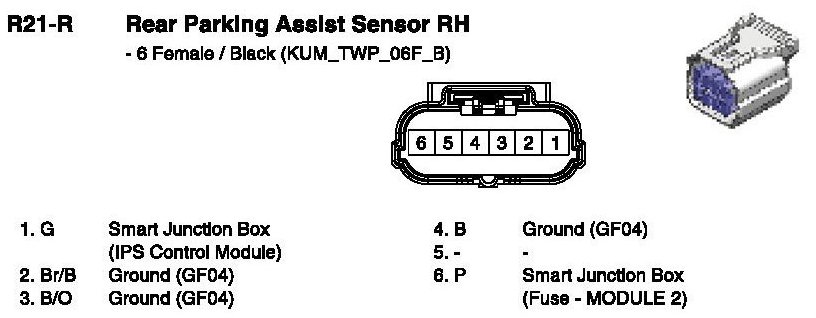

R21-R Rear Parking Assist Sensor RH
R21-R Rear Parking Assist Sensor RH
R21-R Rear Parking Assist Sensor RH:
