Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft) >> Immobilizer Module (W/O Smart Key)

Immobilizer Module (W/O Smart Key)

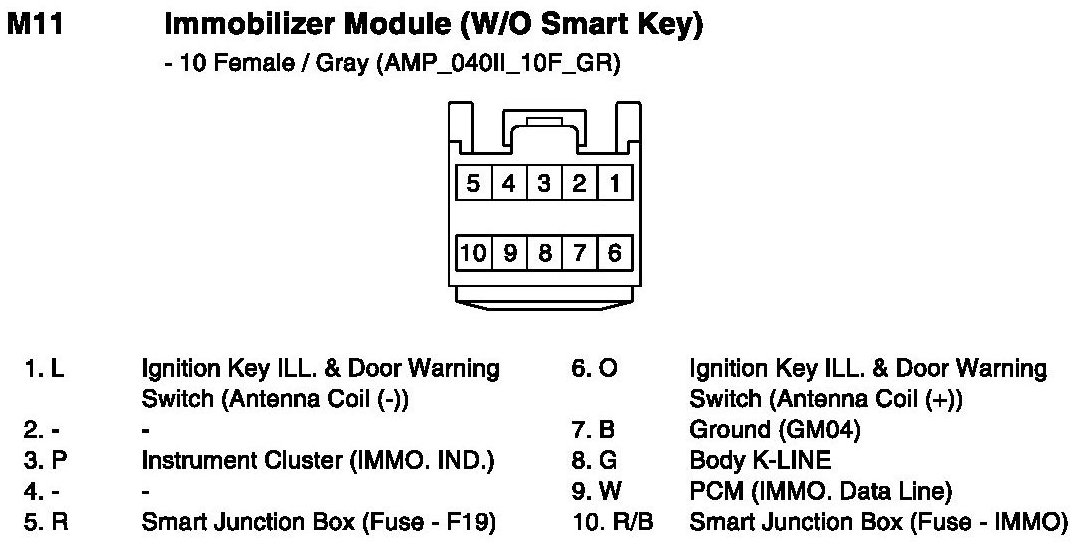

M11 Immobilizer Module (W/O Smart Key):
