Passenger Power Window Switch (W/O BCM)
Passenger Power Window Switch (W/O BCM)

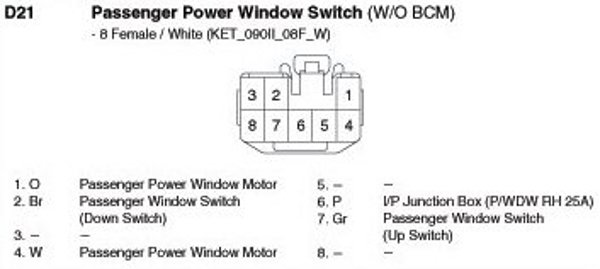

D21 Passenger Power Window Switch (W/O BCM):
