Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2012
>>
Accent L4-1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Camshaft Position Sensor
>>
Diagrams
>>
Connector Views
>>
Camshaft Position Sensor (Intake)
Camshaft Position Sensor (Intake)

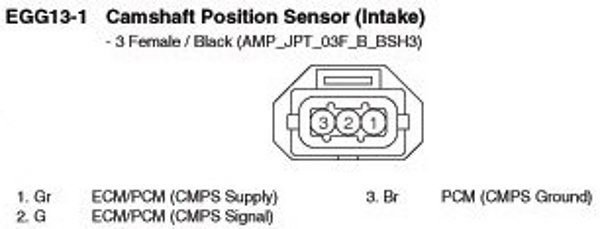

EGG13-1 Camshaft Position Sensor (Intake):
