Accelerator Pedal Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

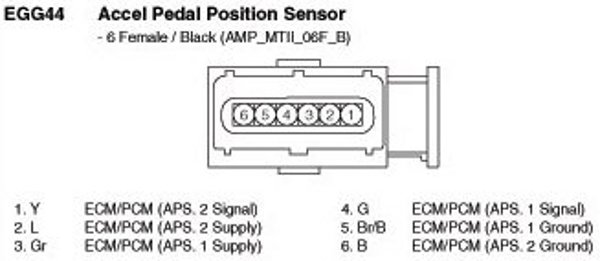

EGG44 Accel Pedal Position Sensor:
