Transmission Position Sensor/Switch: Diagrams

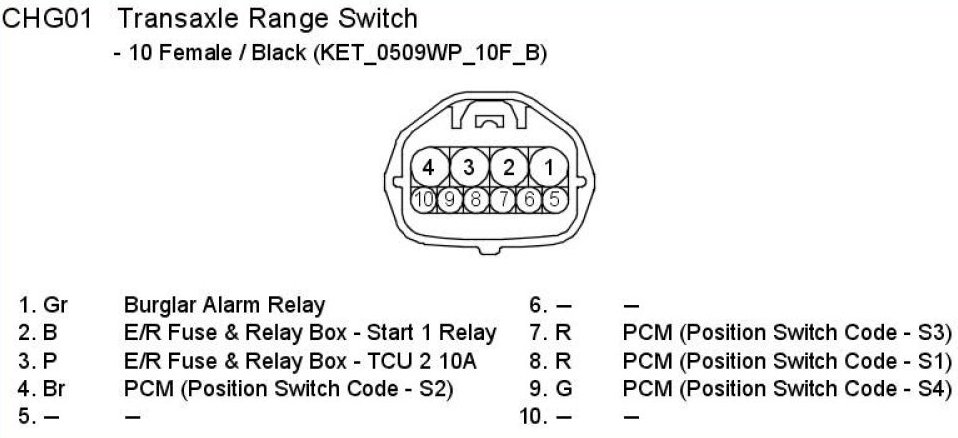

CHG01 Transaxle Range Switch:

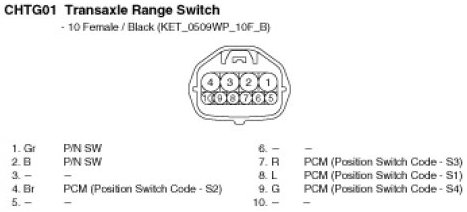

CHTG01 Transaxle Range Switch:
