Heating and Air Conditioning: Specifications





Specification

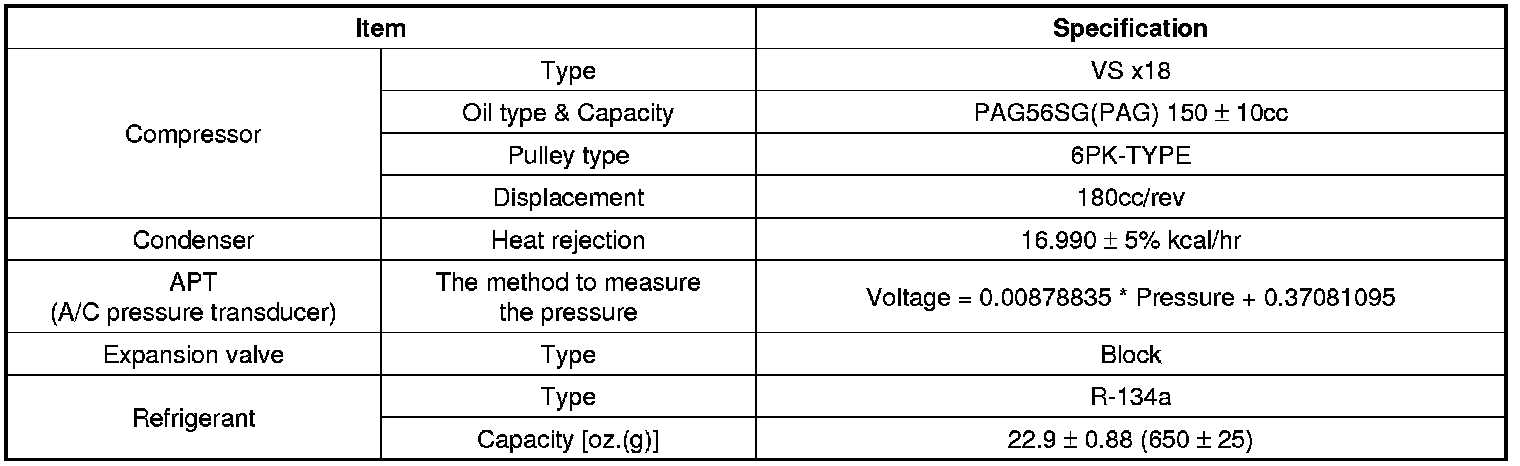

Air Conditioner

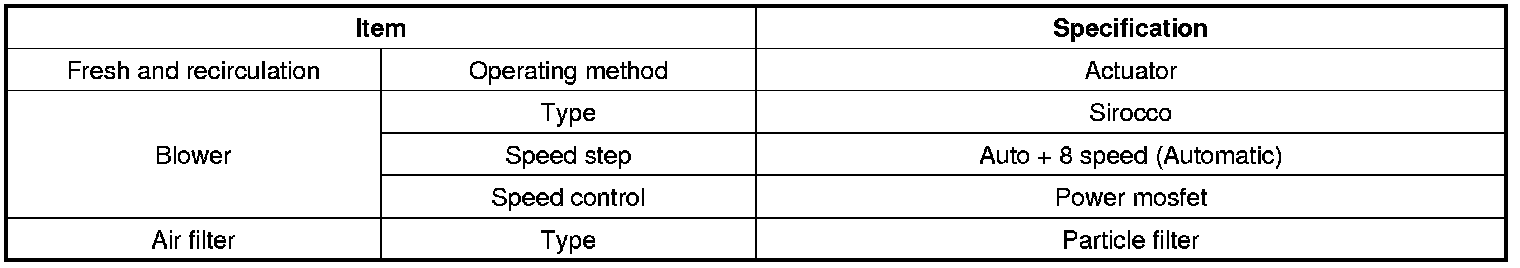

Blower Unit

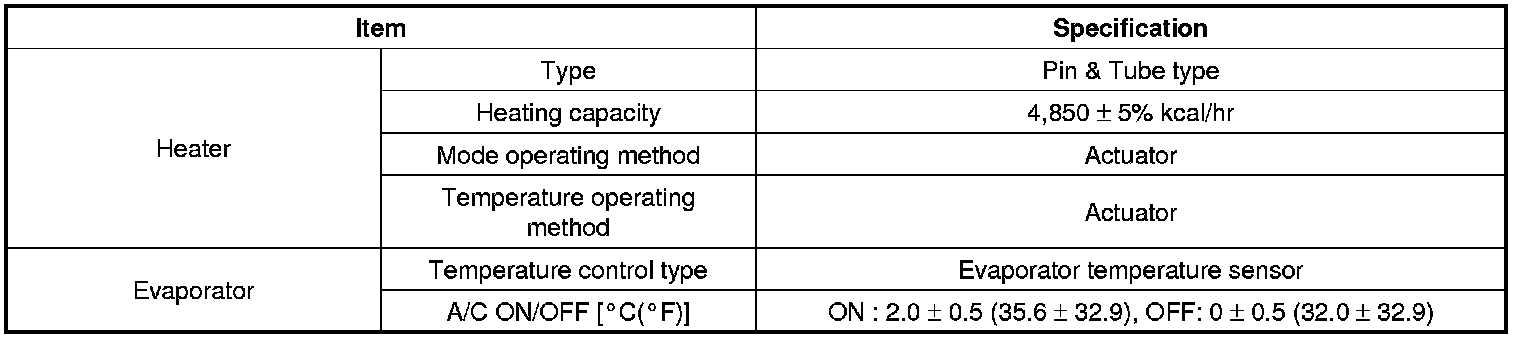

Heater and Evaporator Unit
