Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2011
>>
Equus V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Throttle Position Sensor
Throttle Position Sensor

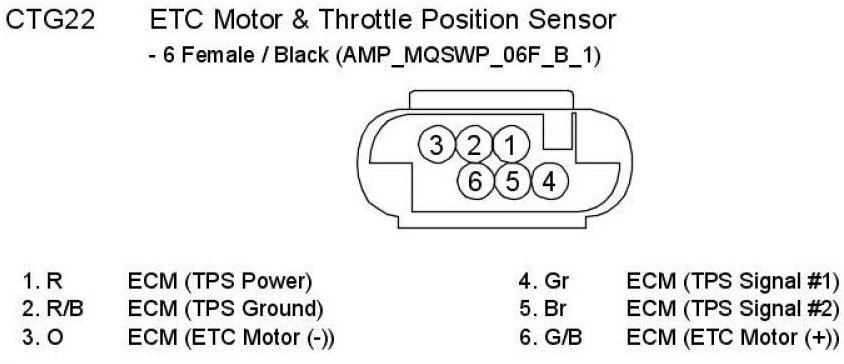

CTG22 ETC Motor & Throttle Position Sensor:
