Home
>>
Hyundai
>>
2011
>>
Equus V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connectors
>>

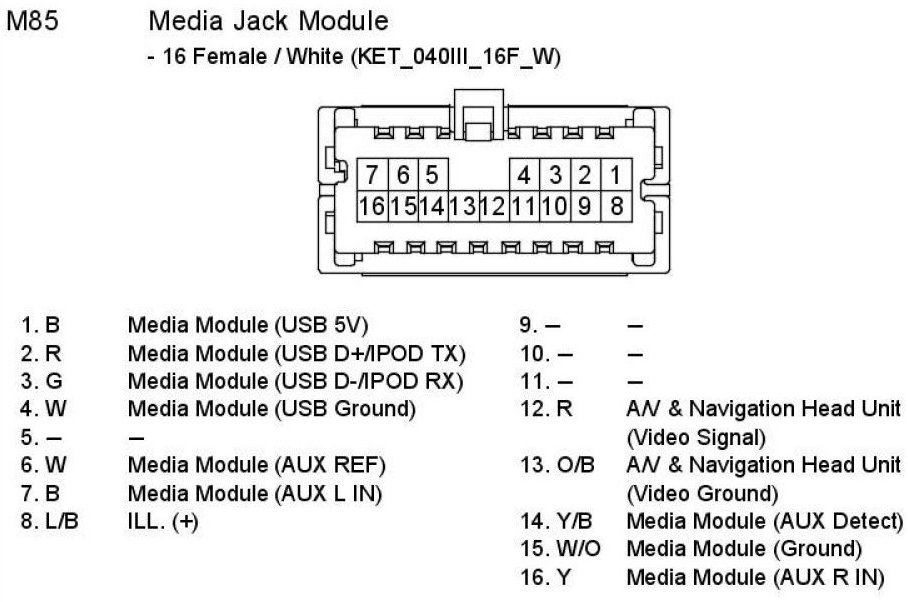

M85 Media Jack Module
M85 Media Jack Module
M85 Media Jack Module:
