Home
>>
Hyundai
>>
2011
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Connector Views
Connector Views

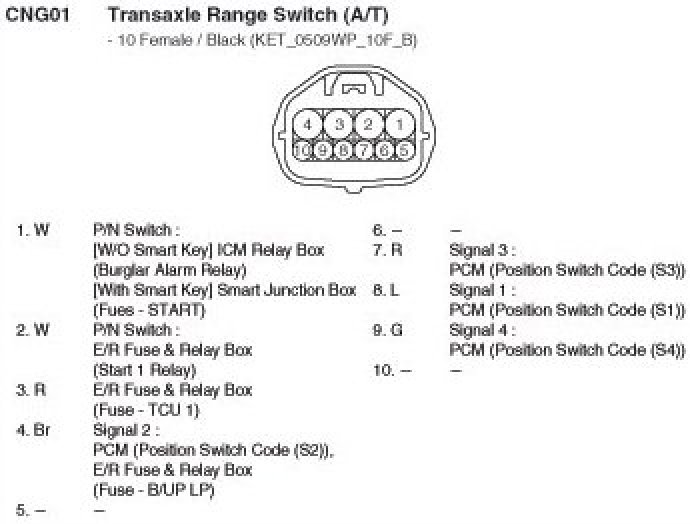

CNG01 Transaxle Range Switch (A/T):
