Home
>>
Hyundai
>>
2011
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Passenger Power Window Switch (W/O Central Door Lock)
Passenger Power Window Switch (W/O Central Door Lock)

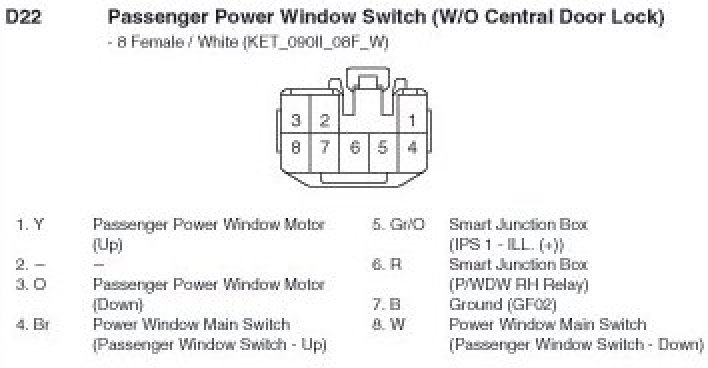

D22 Passenger Power Window Switch (W/O Central Door Lock):
