Fuel Pump: Service and Repair

Removal

1. Release the residual pressure in fuel line .
2. Remove the fuel pump service cover (A).




3. Disconnect the fuel pump connector (A), the fuel tank pressure sensor connector (B) and the connector (C).
4. Disconnect the fuel feed tube quick connector (D) and the vapor tube quick-connector (E).

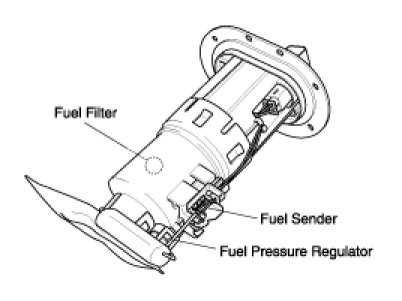

5. Remove the installation bolts (F), and then remove the fuel pump from the fuel tank.










Installation

1. Installation is reverse of removal.

Fuel pump installation bolt:
2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)
