Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2011
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
System Overview Diagrams
System Overview Diagrams

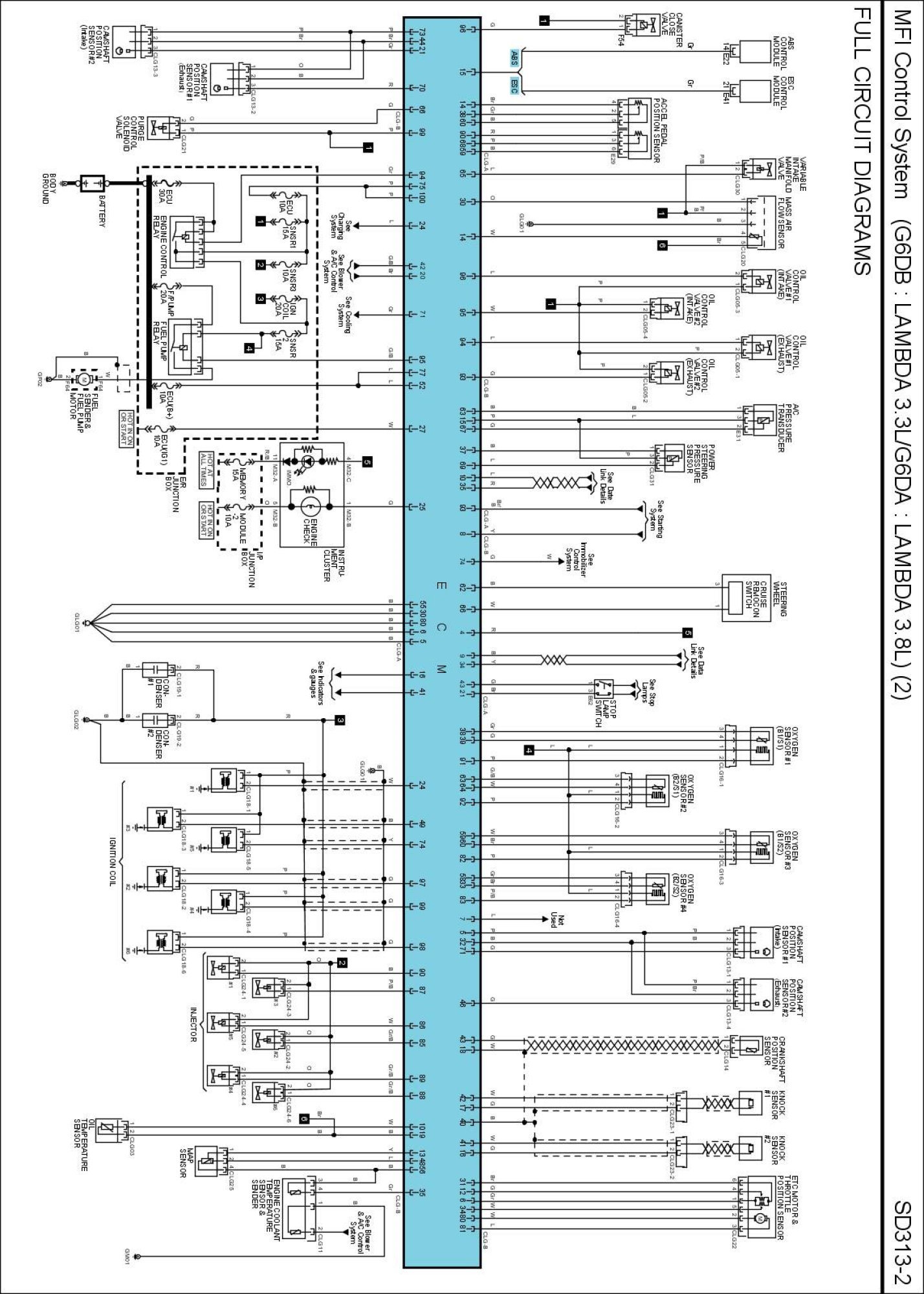

Full Circuit Diagram:
Full Circuit Diagram:
