Home
>>
Hyundai
>>
2011
>>
Accent L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>

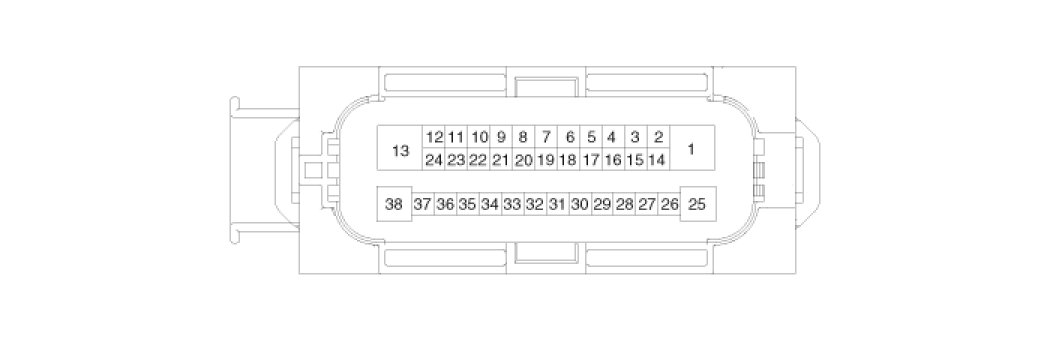

Connector Views
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

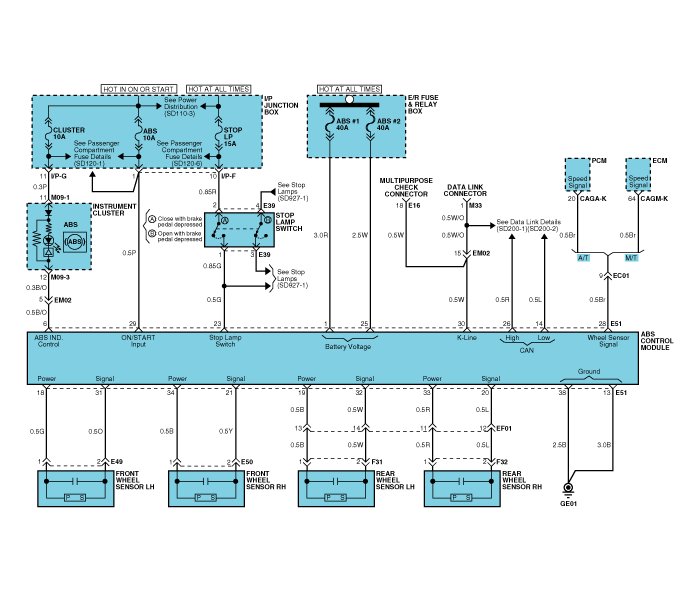

ABS Circuit Diagram

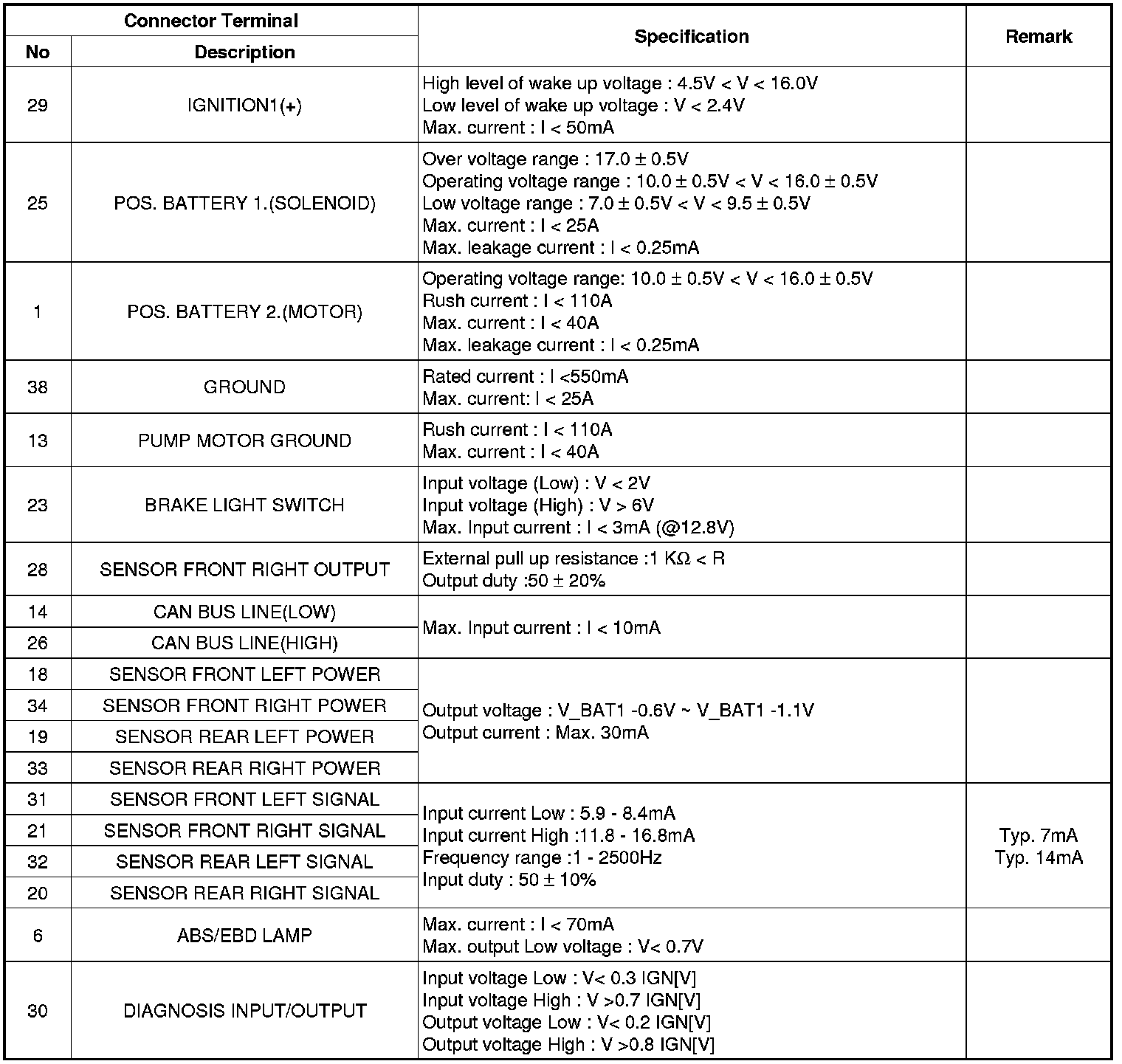

ABS Connector Input/output
