Fuel Filler Neck: Service and Repair

Removal

1. Remove the RH-rear inner wheel house.

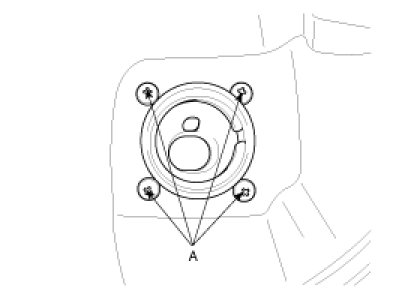

2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).

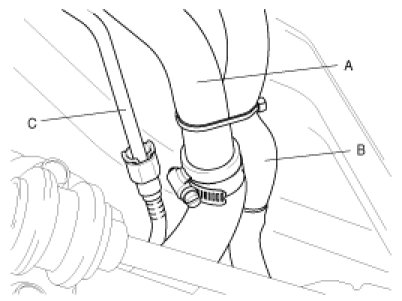

3. Disconnect the fuel filler hose (A), the leveling hose (B), and the recirculation line (C).

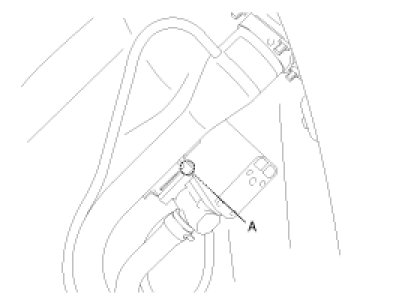

4. Disconnect the canister close valve connector (A).




5. Unscrew the mounting bolt and remove the fuel filler neck assembly.

Installation

1. Installation is reverse of removal.
