Evaporative Emission Control Canister: Service and Repair

Removal

1. Remove the fuel tank .

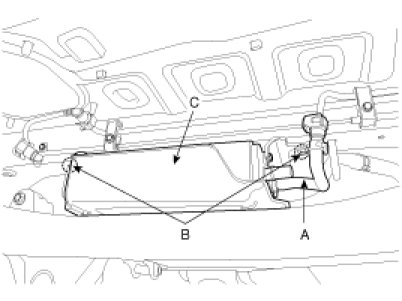

2. Disconnect hoses connecting to the canister (A).
3. Unfasten two mounting bolts (B) and remove the canister (C).






Installation

Installation is in reverse order of removal.

Torque:1.7 - 2.6 kgf.m (16.7 - 25.5 N.m, 12.3 - 18.8 lb-ft)
