Traction Control Switch: Testing and Inspection

Inspection

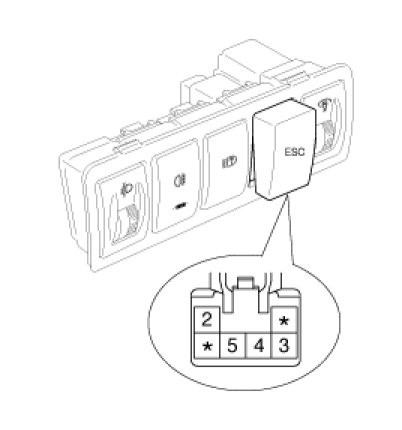

1. Remove the ESC OFF switch from the switch panel on the crashpad of the driver's side.

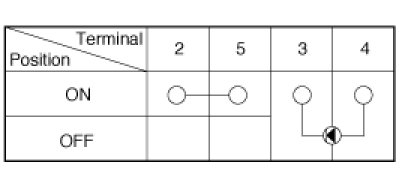

2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
