Component Inspection

Transmission

Automatic Transaxle - P0890 TCM Power Relay Circuit Low - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "A/T CONTROL RELAY"

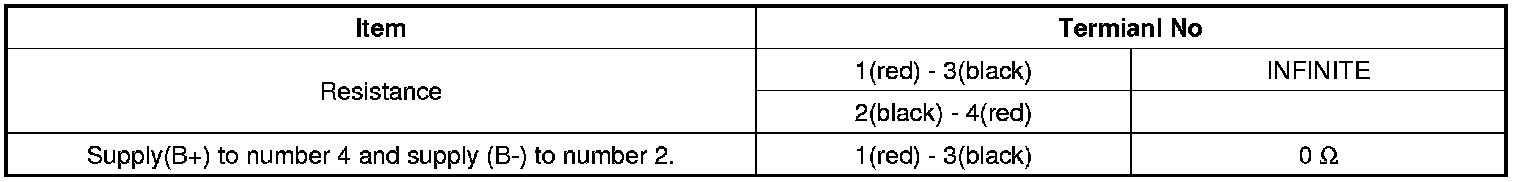

3. Measure the resistance between each terminal of the sensor
