Component Inspection

Transmission

Automatic Transaxle - P0885 TCM Power Relay Control Circuit/Open - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "A/T CONTROL RELAY"

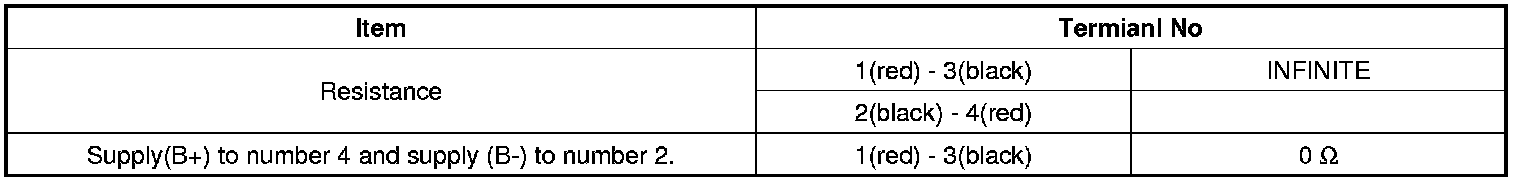

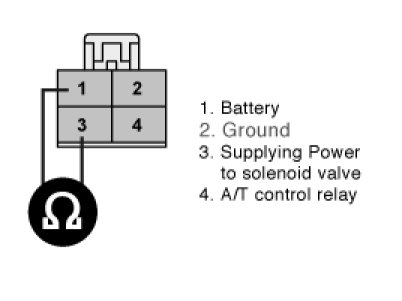

3. Measure the resistance between each terminal of the sensor
