Automatic Transaxle - P0750 Shift Control Solenoid Valve 'A' (Low&Reverse Brake Solenoid) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "LR SOL. VALVE" parameter on the scantool
4. Shift gear position

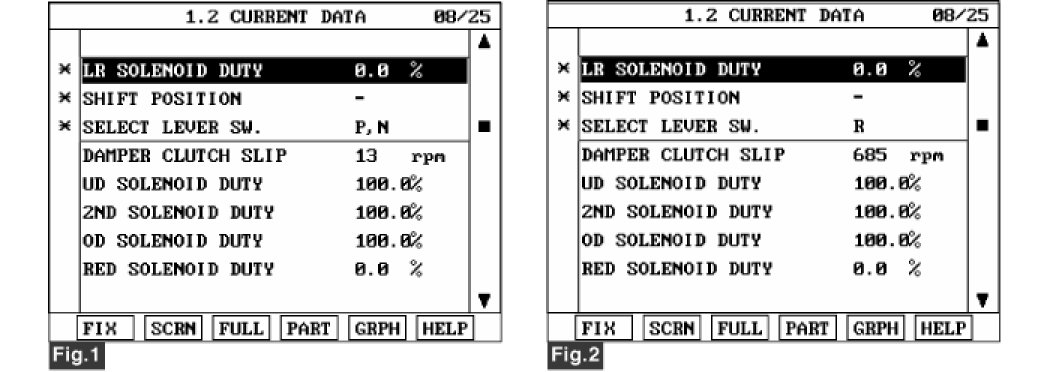

Fig 1) P,N
Fig 2) "R"

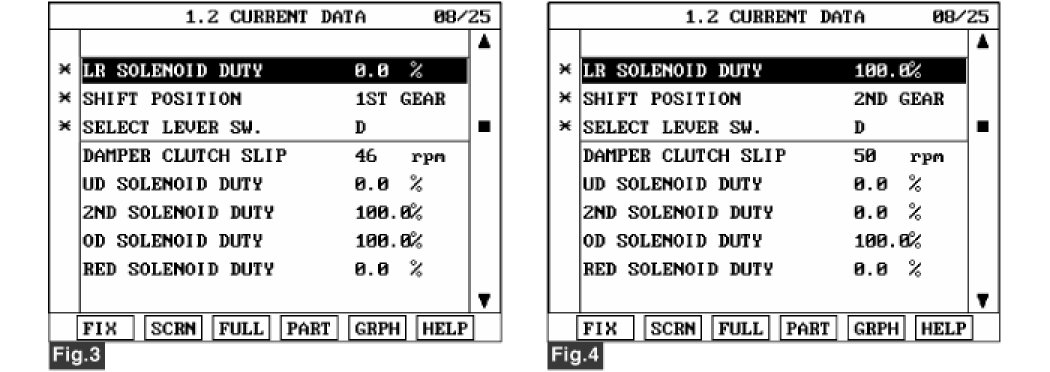

Fig 3) "D 1st" gear
Fig 4) "2nd" gear

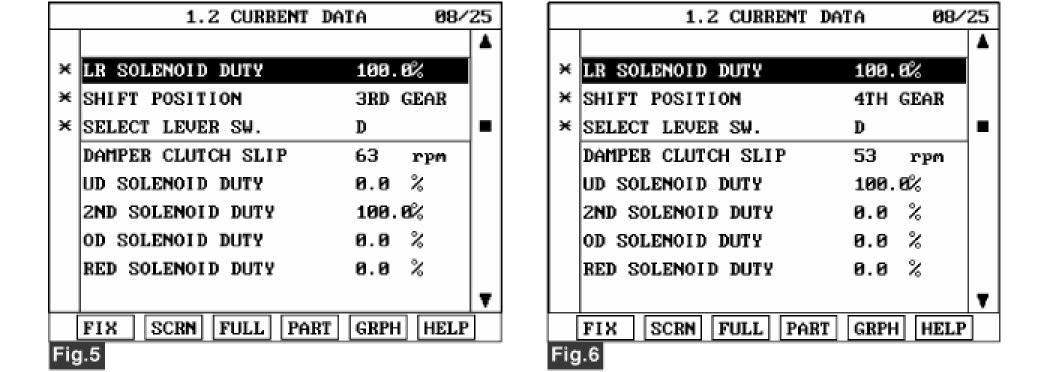

Fig 5) "3rd" gear
Fig 6) "4th" gear

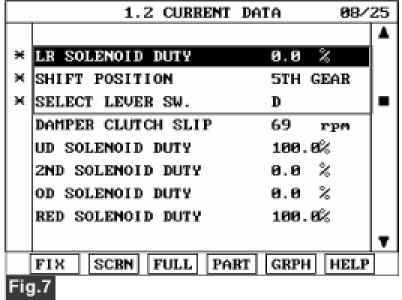

Fig 7) "5th" gear

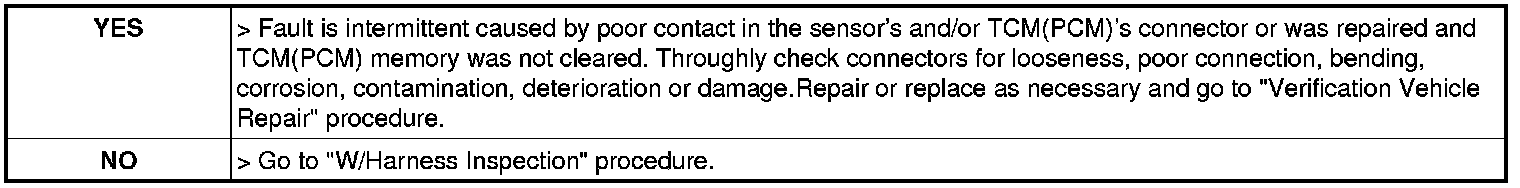

5. Does "LR SOLENOID DUTY" follow the referance data?
