Automatic Transaxle - P0748 Pressure Control Solenoid Valve (VFS) 'A' Electrical - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "PRESS CONTROL SOL. VALVE" parameter on the scantool
4. Shift gear position "N" to "4TH GEAR".

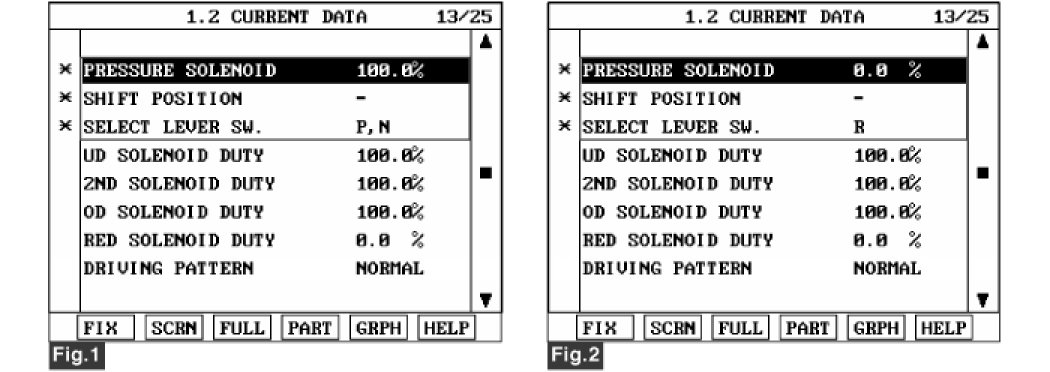

Fig 1) P,N
Fig 2) "R"

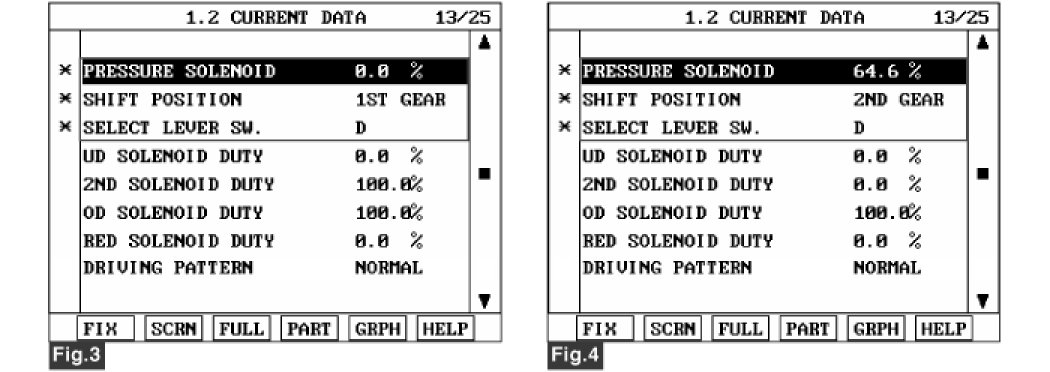

Fig 3) "D 1st" gear
Fig 4) "2nd" gear

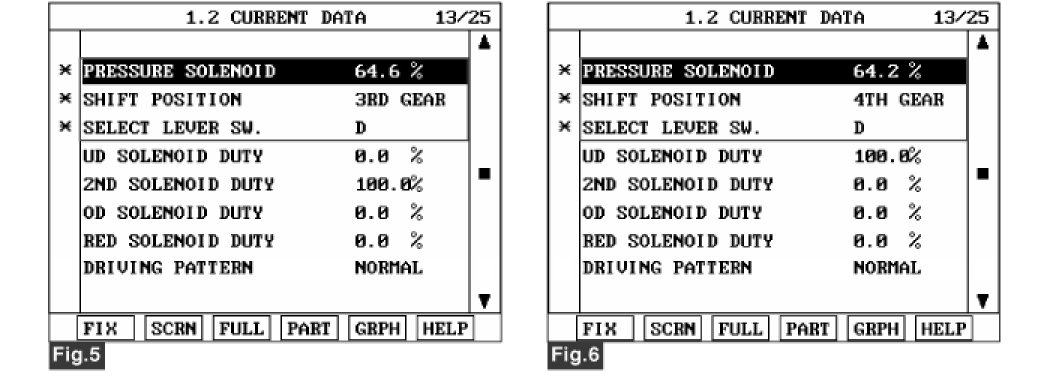

Fig 5) "3rd" gear
Fig 6) "4th" gear

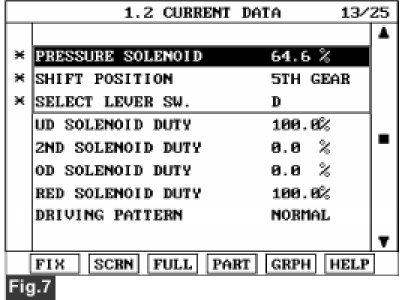

Fig 7) "5th" gear

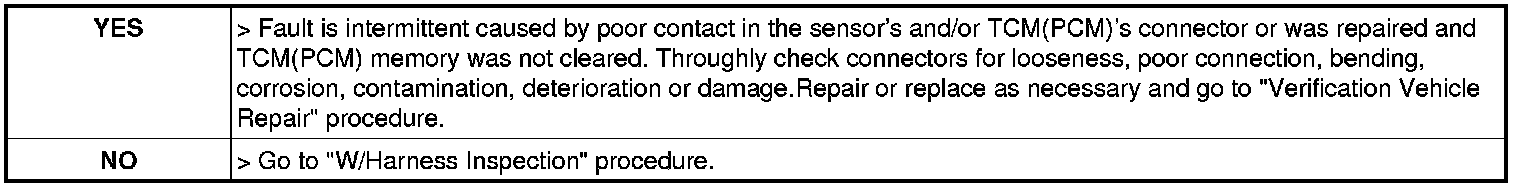

5. Does "PRESS CONTROL SOL DUTY" follow the referance data?
