Automatic Transaxle - P0742 Torque Converter Clutch Circuit Stuck On - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Select "D RANGE" and drive vehicle
4. Monitor the "TORQUE CONVERTER (DAMPER) CLUTCH" parameter on the scantool

Specification :TCC SLIP>5 RPM




Fig 1) Normal status

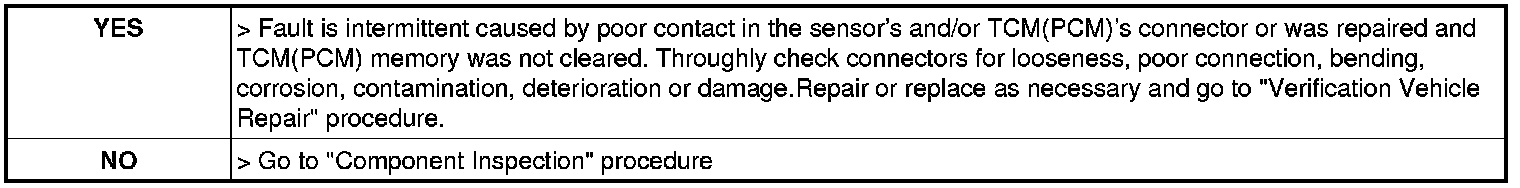

5. Is TCC SLIP" within specifications?
