Automatic Transaxle - P0736 Reverse Incorrect Ratio - Component Inspection

Component inspection

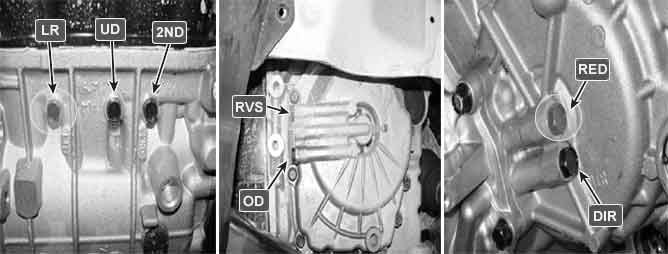

1. Connect Oil pressure gauge to "LR" and "RED" and "REV" port.
2. Engine "ON".
3. Drive a car with gear position "R "
4. Compare it with referance data as below

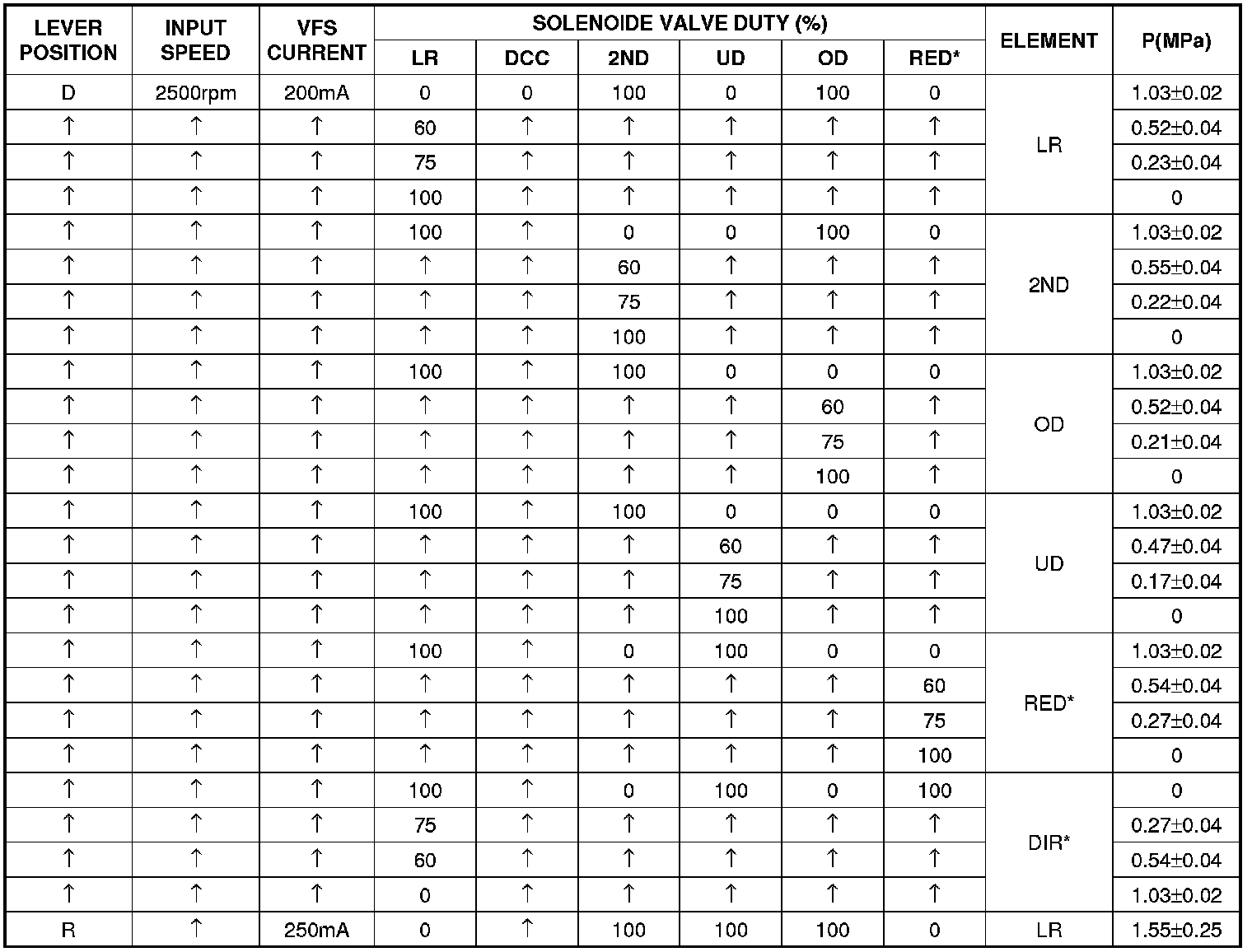

Specification :Refer to Standard Oil Pressure Table as below





** The values are subject to change according to vehicle model or condition

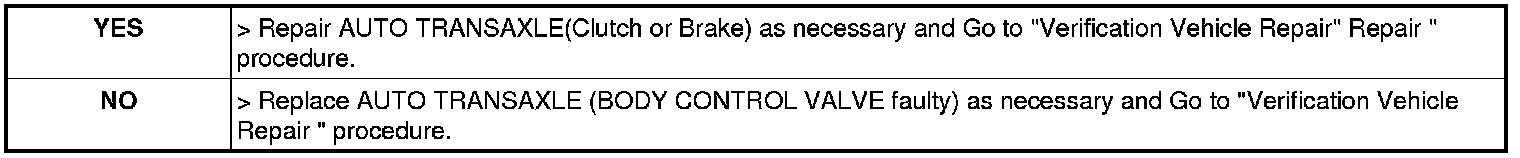

5. Is oil pressure value within specifications?
