Automatic Transaxle - P0735 Gear 5 Incorrect Ratio - Scantool Diagnostics

Monitor Scantool Data

** It is difficult to "STALL TEST" in 5th gear, so that Go to "W/Harness Inspection" procedure

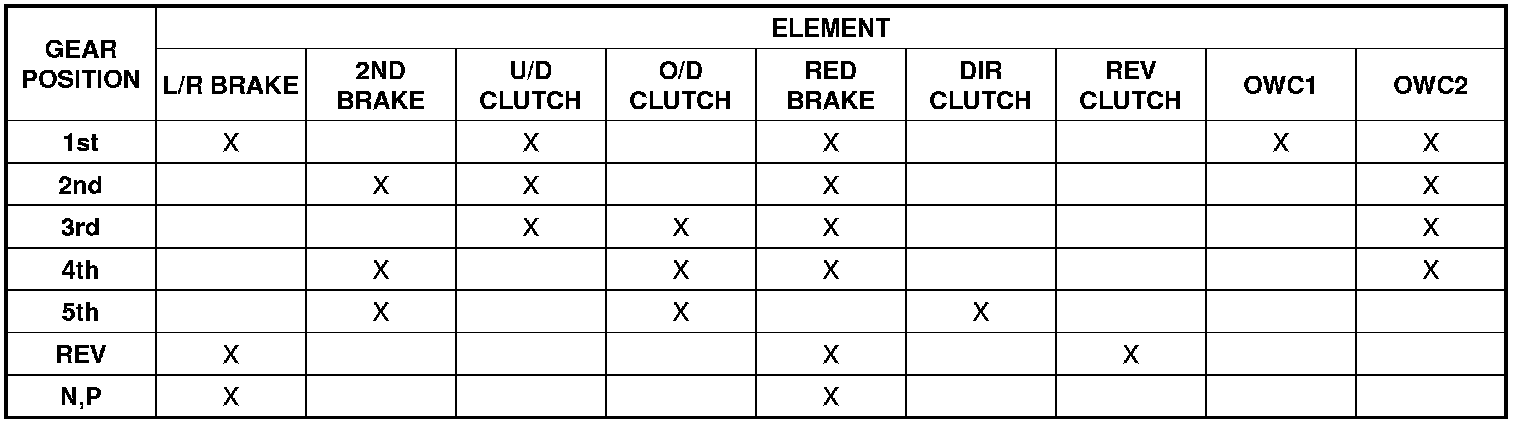

OPERATING ELEMENT OF EACH SHIFTING RANGE





** Low & Reverse Brake is released When the Vehicle speed over the 5 MPH (7 Km/h)
