Automatic Transaxle - P0708 Transmission Range Sensor Circuit High Input - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Ignition "ON" & Engine "OFF".
3. Monitor the "TRANSAXLE RANGE SWITCH" parameter on the scantool
4. Shift selector lever from "P" range to other range.

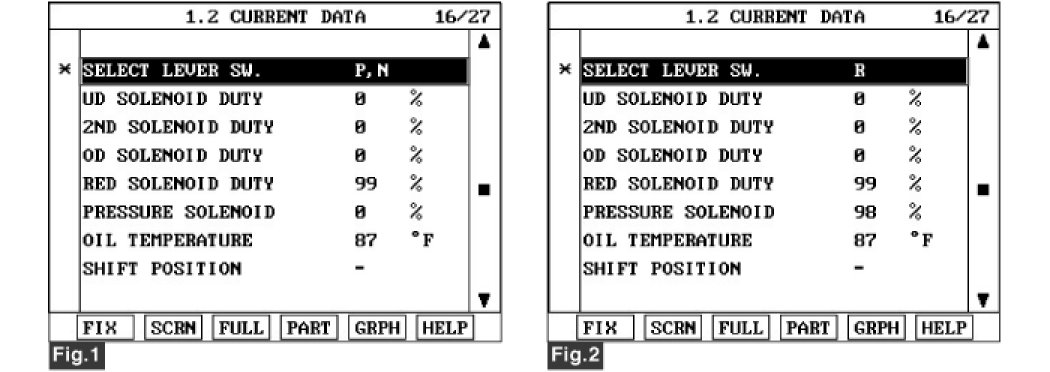

Fig 1) "P" Range
Fig 2) "R" Range

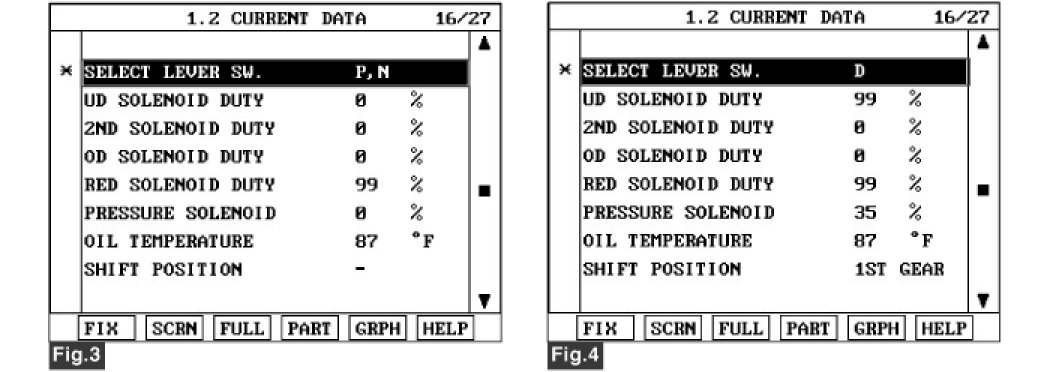

Fig 3) "N" Range
Fig 4) "D" Range
5. Does "TRANSAXLE RANGE SWITCH" follow the referance data?
