Air Register: Service and Repair

Replacement

Air Vent Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover.

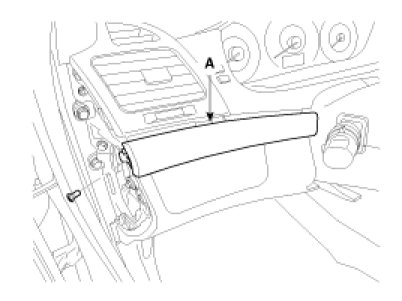

2. Remove the side garnish (A).






3. Loosen the mounting screws, then remove the air vent (A).






4. Installation is the reverse of removal.
