Heater & A/C Control Unit (Full Automatic)
Heater & A/C Control Unit (Full Automatic)

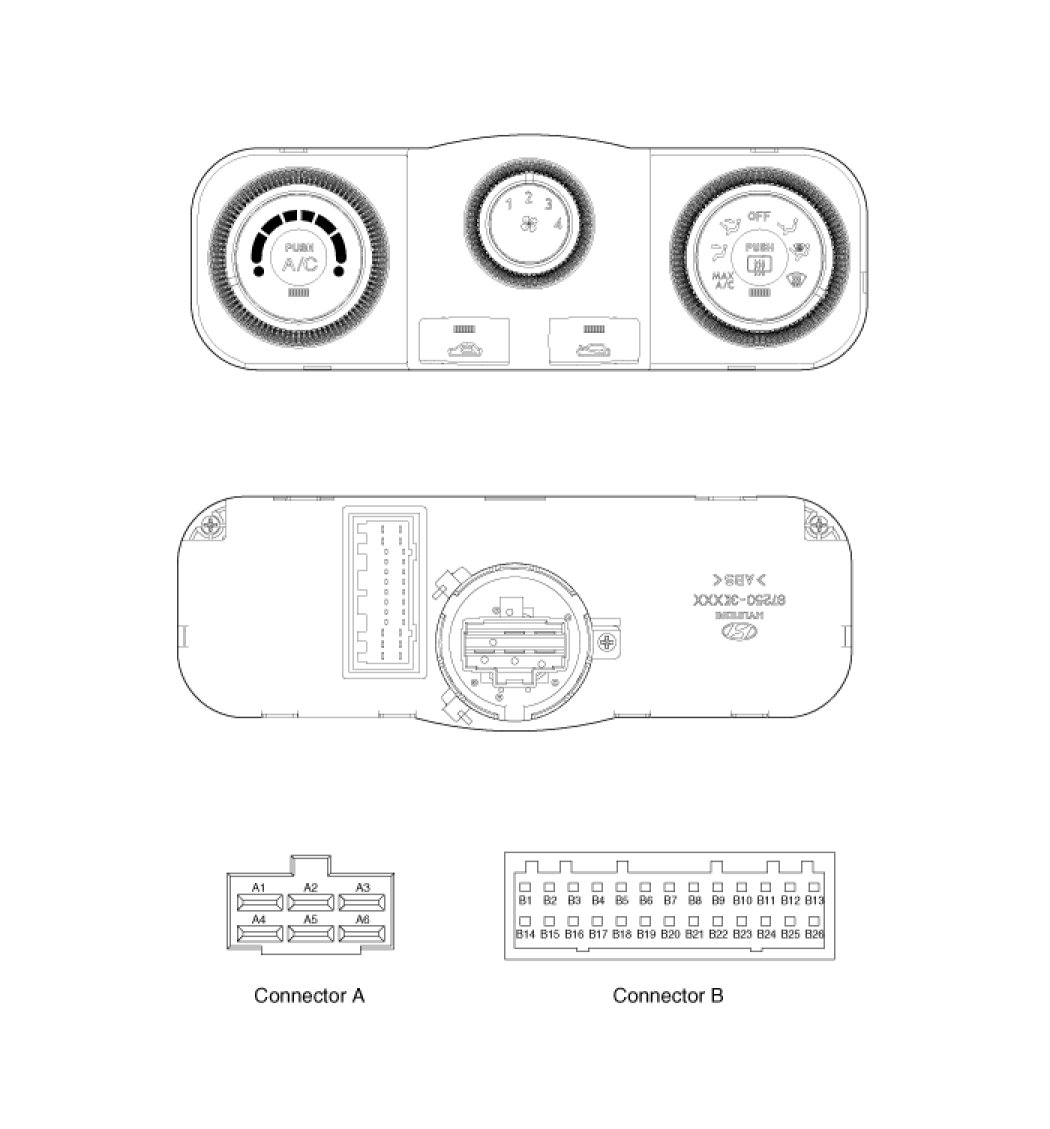

Components

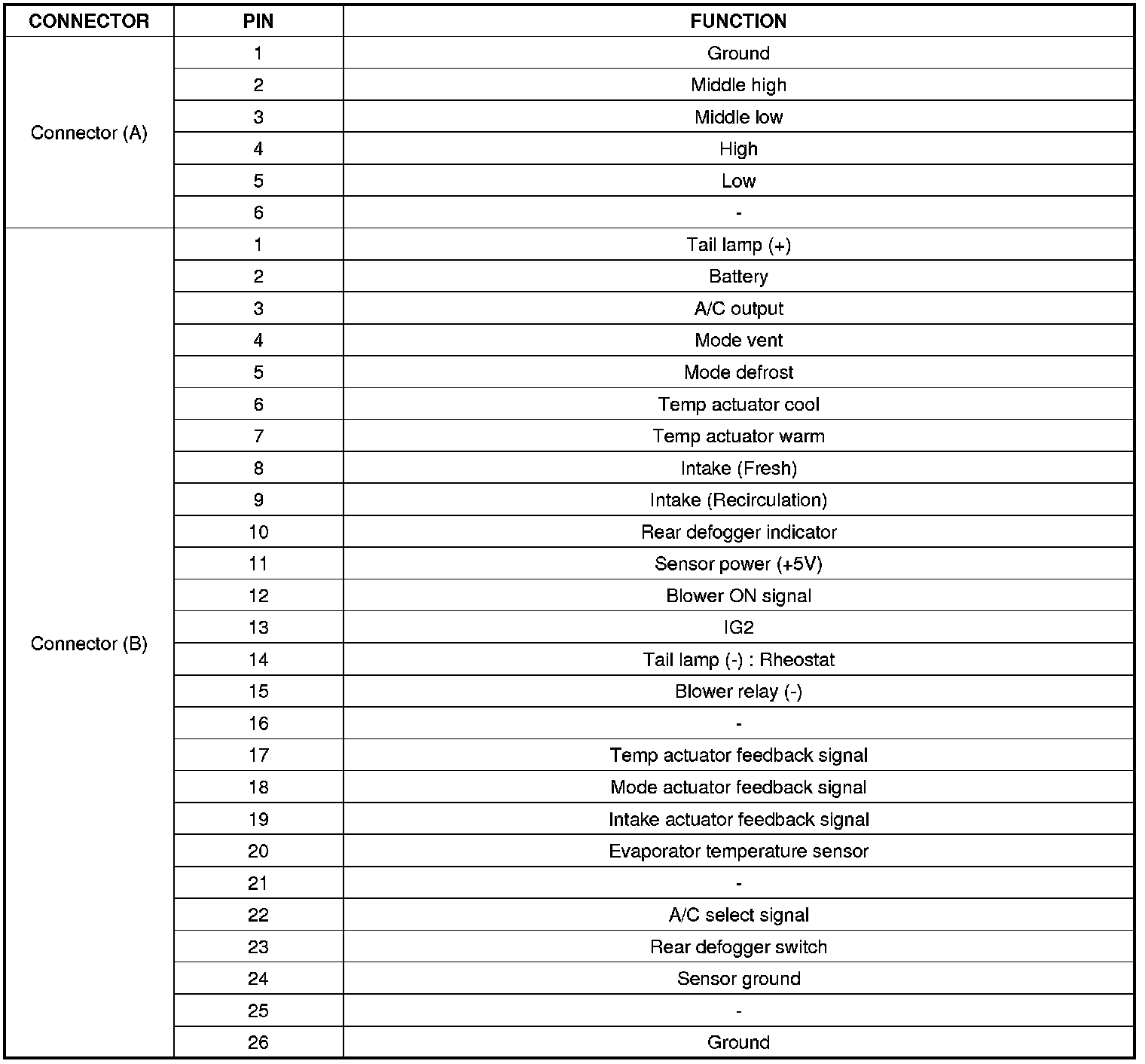

Connector Pin Function
