ABS (Anti-Lock Brake System)
ABS (Anti-Lock Brake System)

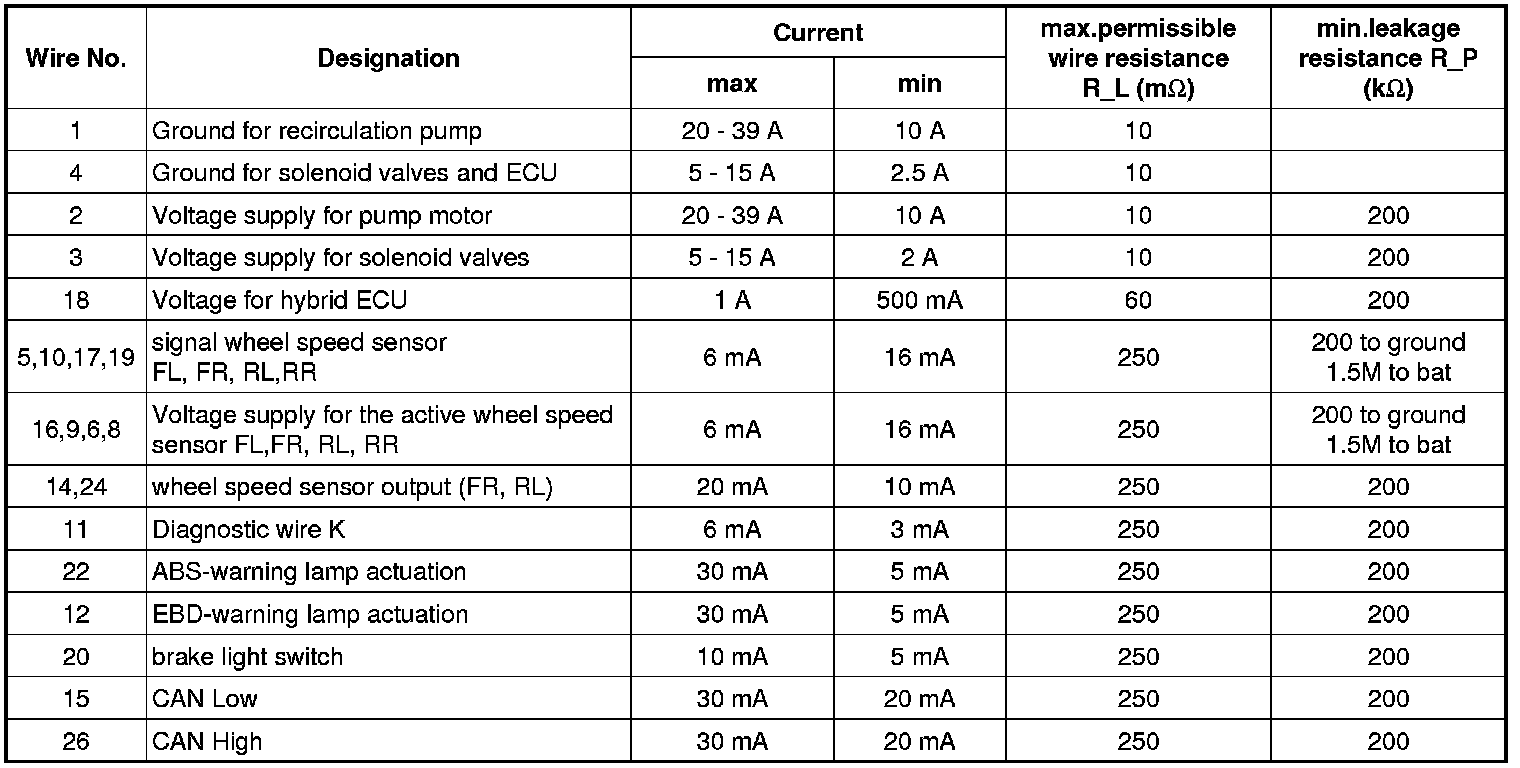

ECU Connector Input/output(ABS)

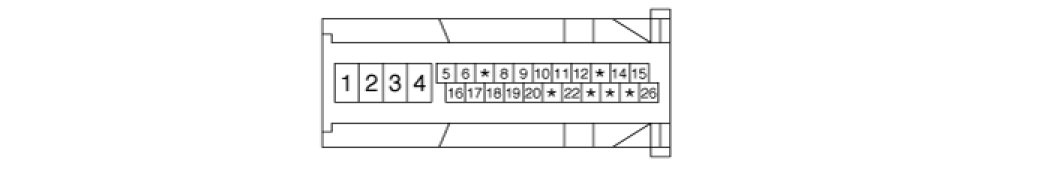

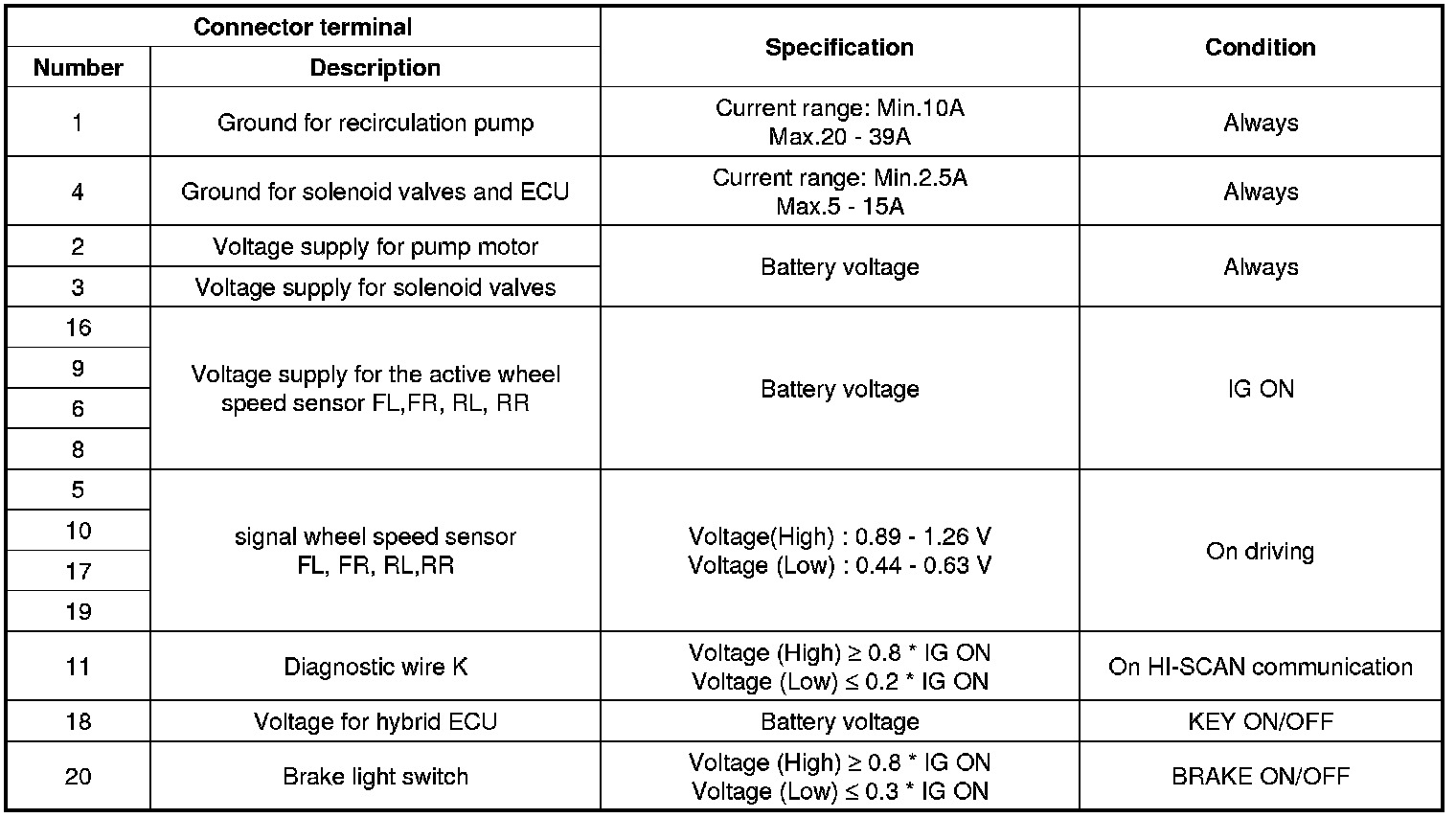

ABS ECU Connector

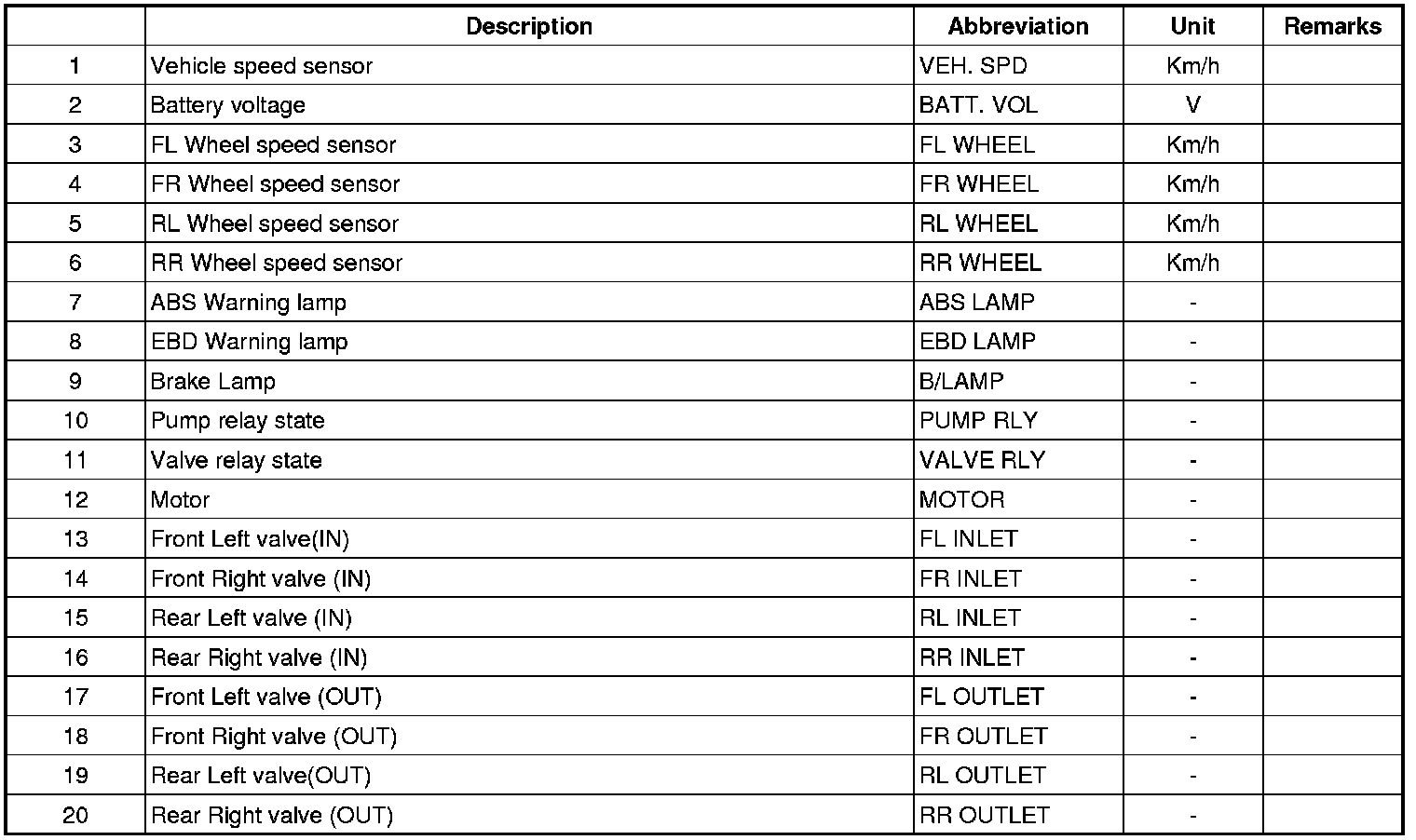

Sensor Output On Hi-scan(ABS)
