Amplifier: Service and Repair

Replacement

External Amp
1. Remove the luggage side trim.

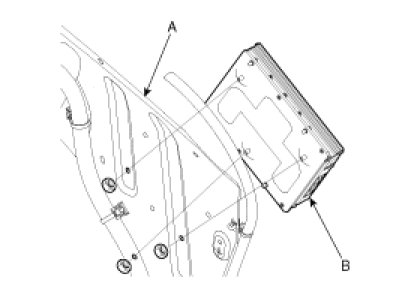

2. Remove the external amp (B) from the quarter inner panel (A) after removing 3 nuts.




3. Installation is the reverse of removal.
