Automatic Transaxle - P0765 Shift Control Solenoid Valve 'D'(Over Drive Clutch Solenoid) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "OD SOL. VALVE" parameter on the scantool
4. Shift gear position 2nd to 3rd.

Specification:2nd gear -> 0.0%, 3nd gear -> 100%

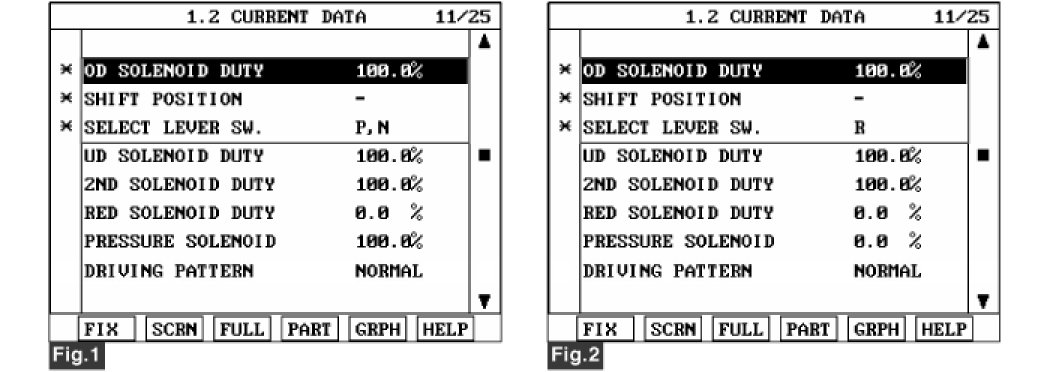

Fig 1) P,N
Fig 2) "R"

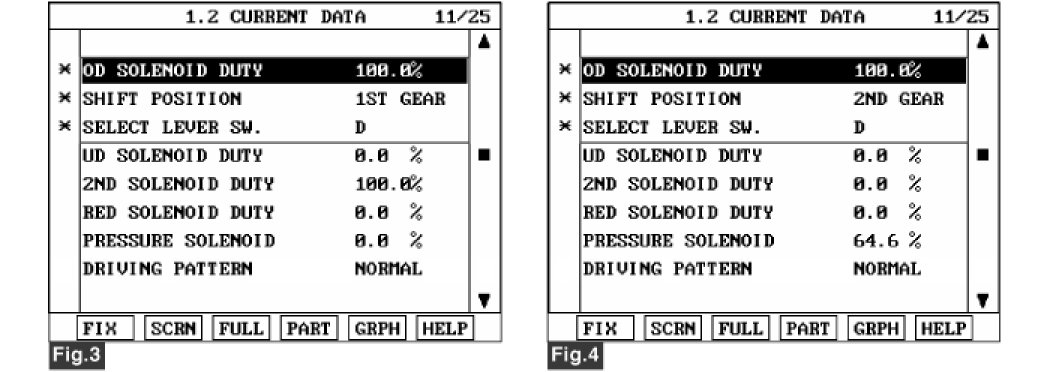

Fig 3) "D 1st" gear
Fig 4) "2nd" gear

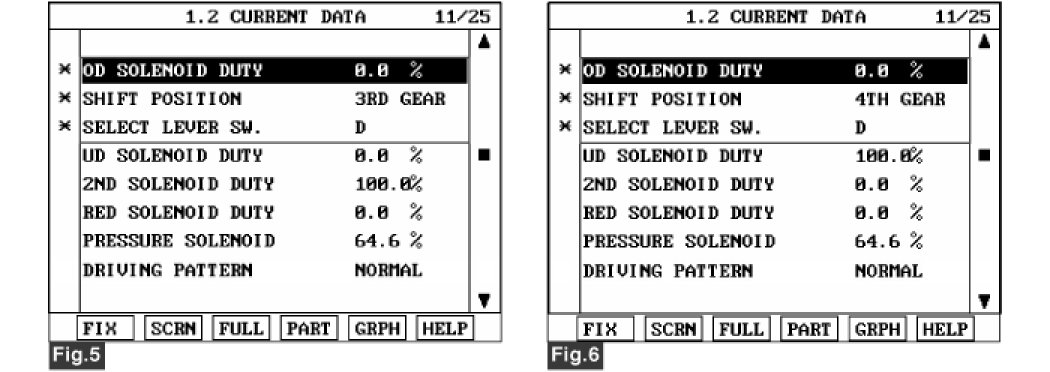

Fig 5) "3rd" gear
Fig 6) "4th" gear
Fig 7) "5th" gear

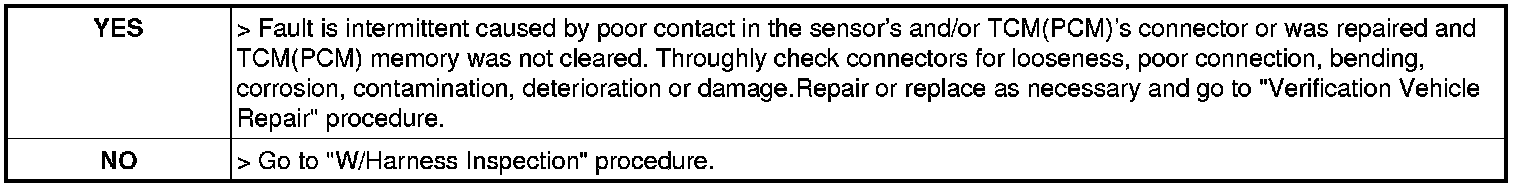

5. Does "OD SOLENOID DUTY" follow the referance data?
