Scantool Diagnostics

Transmission

Automatic Transaxle - P0717 Input/Turbine Speed Sensor 'A' Circuit No Signal - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR" parameter on the scantool
4. Driving at speed of over 19 Mile/h (30 Km/h)

Specification :Increasing Gradually

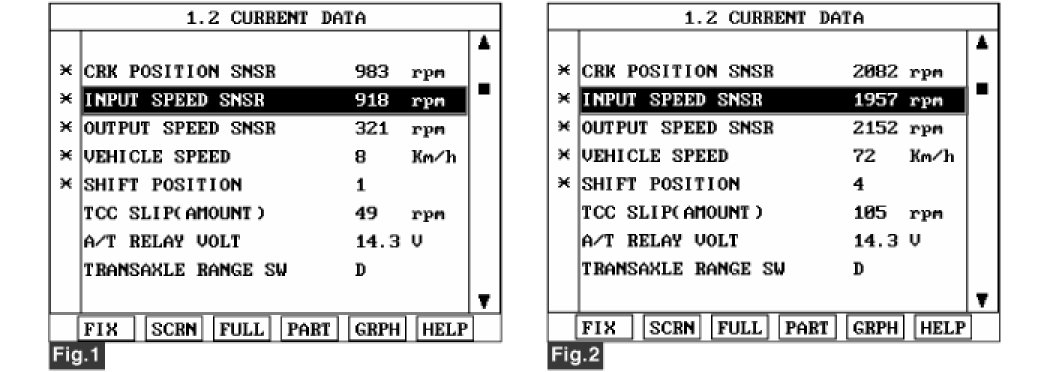

Fig 1) Idling
Fig 2) Accelerating

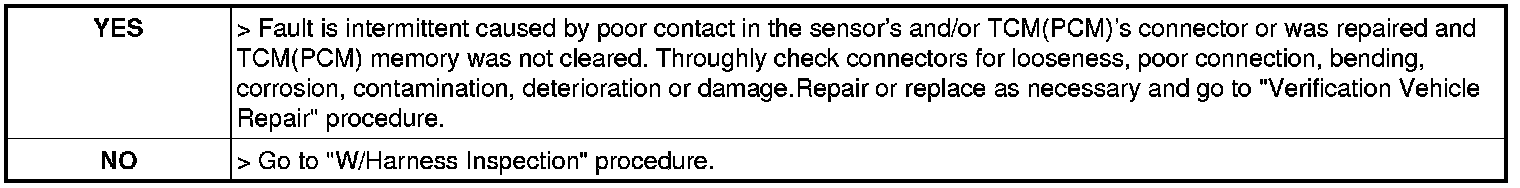

5. Does "Input Speed Sensor " follow the referance data?
