Trailing Arm: Service and Repair

Replacement

1. Remove the rear wheel & tire.

Tightening torque:
90 - 110N.m (9.0 - 11.0kgf.m, 65 - 80lb-ft)

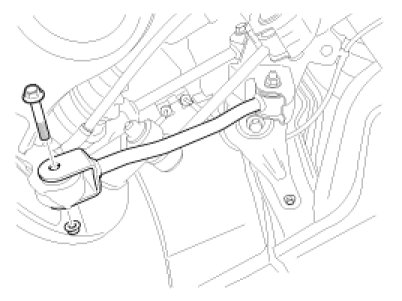

2. Loosen the bolt & lock nuts.

Tightening torque:
100 - 120N.m (10.0 - 12.0kgf.m, 72 - 87lb-ft)

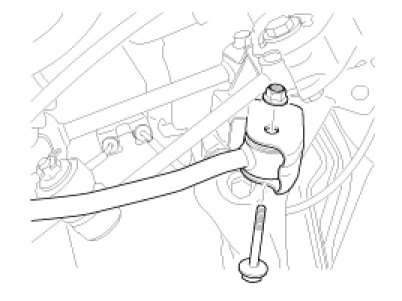

3. Loosen the flange bolt & lock nuts.

Tightening torque:
100 - 120N.m (10.0 - 12.0kgf.m, 72 - 87lb-ft)





4. Installation is the reverse of removal.
