Rear Upper Arm

Replacement

1. Remove the rear wheel & tire.

Tightening torque:
90 - 110N.m (9.0 - 11.0kgf,m, 65 - 80lb-ft)


2. Support the lower portion of the rear axle with a jack securely.
3. Remove the split pin and castle nuts (A).

Tightening torque:
80 - 90N.m (8.0 - 9.0kgf.m, 58 - 65lb-ft)

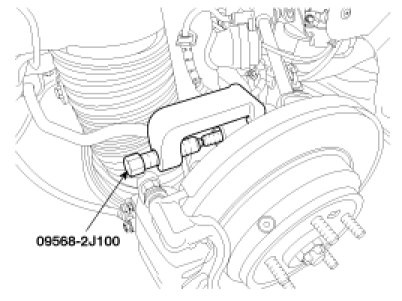

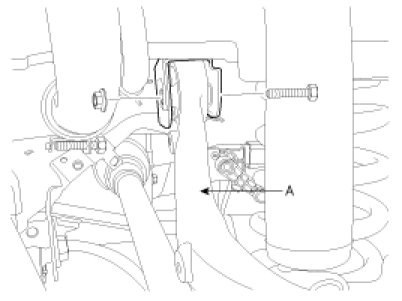

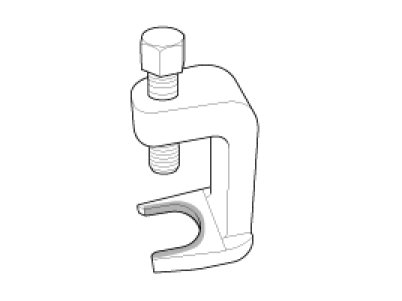

4. Disconnect the rear upper arm (A) with the rear carrier using a SST (09568-2J100).








5. Loosen the flange bolt & lock nuts.




6. Installation is the reverse of removal.

CAUTION:
Do not use the lock nuts again.
