Rear Lower Arm

Replacement

1. Remove the rear wheel & tire.

Tightening torque:
90 - 110N.m (9.0 - 11.0kgf.m, 65 - 80lb-ft)

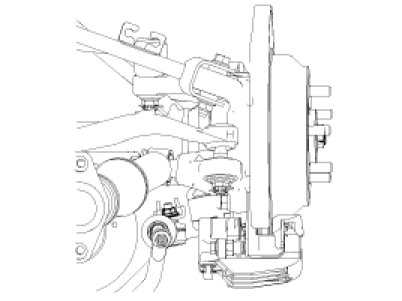

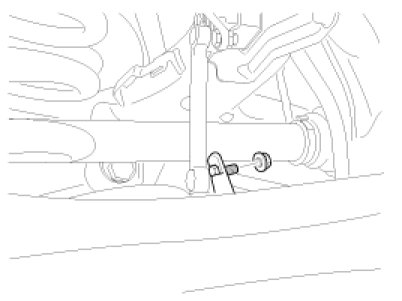

2. Disconnect the rear height sensor & stabilizer link with the lower arm.

Tightening torque
Height sensor : 4 - 6N.m (0.4 - 0.6kgf.m, 3 - 4lb-ft)
Stabilizer link : 50 - 65N.m (5.0 - 6.5kgf.m, 36 - 47lb-ft)

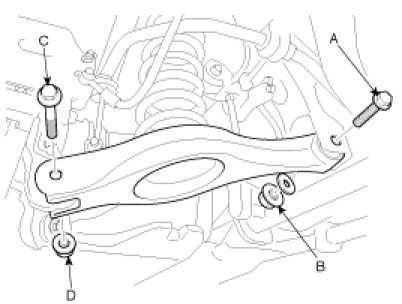

3. Loosen the bolt (A), nuts (B), flange bolt (C), lock nuts (D).

Tightening torque
Axle : 140 - 160N.m (14.0 - 16.0kgf.m, 101 - 116lb-ft)
Damper : 100 - 120N.m (10.0 - 12.0kgf.m, 72 - 87lb-ft)





4. Installation is the reverse of removal.
