Rear Assist Arm

Replacement

1. Remove the rear wheel & tire.

Tightening torque:
90 - 110N.m (9.0 - 11.0kgf.m, 65 - 80lb-ft)


2. Remove the split pin and castle nuts.

Tightening torque:
80 - 90N.m (8.0 - 9.0kgf.m, 58 - 65lb-ft)

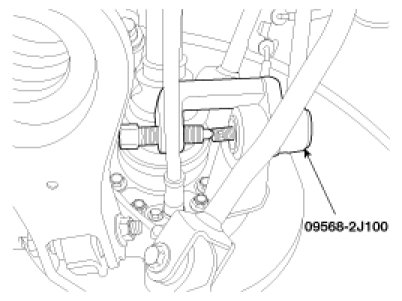

3. Disconnect the rear assist arm with the rear carrier using a SST (09568-2J100).

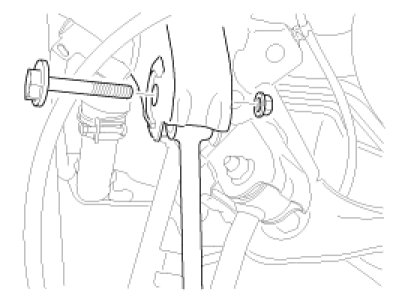

4. Loosen the bolt & lock nuts.

Tightening torque:
100 - 120N.m (10.0 - 12.0kgf.m, 72 - 87lb-ft)





5. Installation is the reverse of removal.
