Console Temperature Control Actuator

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad side cover (A).




3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).




4. After loosening the mounting bolts, then remove the reinforcing panel (A).




5. Remove the shower duct(A).

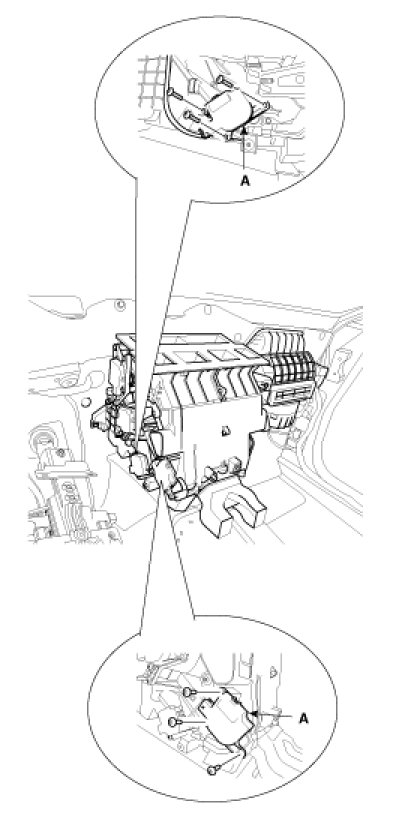

6. Loosen the mounting screws and then remove the console temp control actuator (A).




7. Installation is the reverse order of removal.
