Repair Procedures

Removal

1. Remove the lower crash pad. .
2. Disconnect the stop lamp switch connector (A).




3. Remove the mounting bracket bolts (B).

Tightening torque :
19.6 - 25.5N.m (2.0 - 2.6kgf.m, 14.5 - 18.8lb-ft)

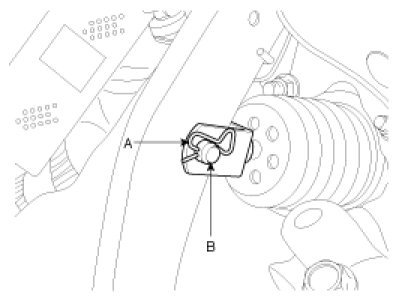

4. Remove the snap pin (A) and clevis pin (B).

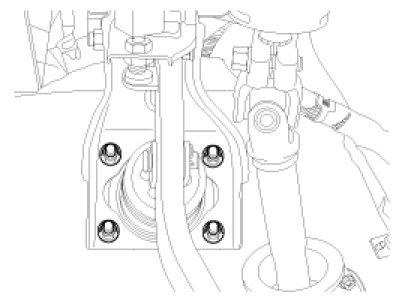

5. Remove the brake pedal member assembly mounting nuts (C) and then remove the brake pedal assembly.

Tightening torque :
14.7 - 21.6N.m (1.5 - 2.2kgf.m, 10.9 - 15.9lb-ft)







Installation

1. Installation is the reverse of removal.

CAUTION:
- Before installing the pin, apply the grease to the clevis pin.
- Use a new snap pin whenever installing.

2. Check the brake pedal operation.
