Engine Control - P2119 Throttle Actuator Control Throttle Body Range/Performance - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Warm up the engine to normal operating temperature.
3. Monitor the "ETC motor, TPS" parameters on the scantool.








Fig 1) Normal data of TPS 1 & TPS 2 at idle.
Fig 2) Normal data of TPS 1 & TPS 2 at acceleration with load.

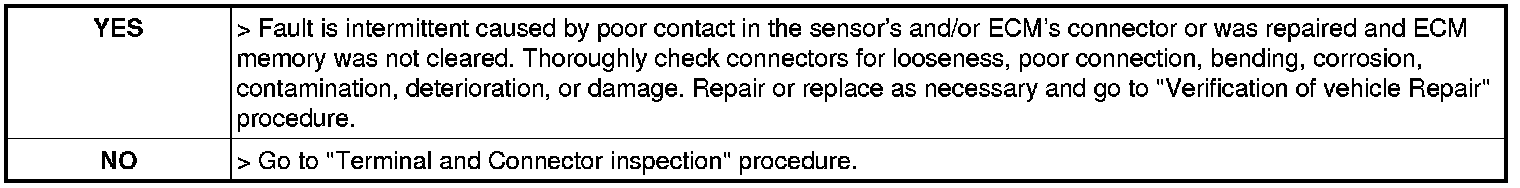

4. Is parameter displayed within specifications?
