Engine Control - P2101 Throttle Actuator Control Motor Circuit Range/Performance - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Warm up the engine to normal operating temperature.
3. Monitor the "ETC motor, TPS" parameters on the scantool.








Fig 1) Normal data of TPS 1 & TPS 2 at idle.
Fig 2) Normal data of TPS 1 & TPS 2 at acceleration with load.

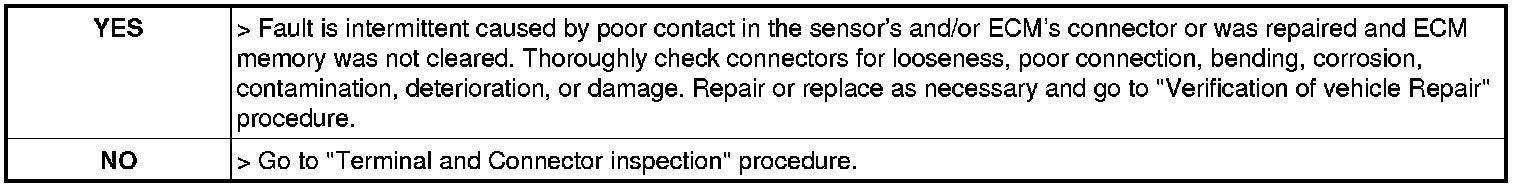

4. Is parameter displayed within specifications?
