W/Harness Inspection

Trans

Automatic Transaxle - P0880 TCM Power Signal Error Open/Short (GND) - W/Harness Inspection

Terminal & Connector Inspection

1. Ignition "OFF".
2. Disconnect TCM connector.
3. Ignition "ON" & Engine "OFF'.
4. Measure voltage between Power supply terminal of TCM wiring side and chassis ground.
5. Measure voltage between Power terminal (IG ON) of TCM wiring side and chassis ground.

Specification : 13.5 - 14.5 V

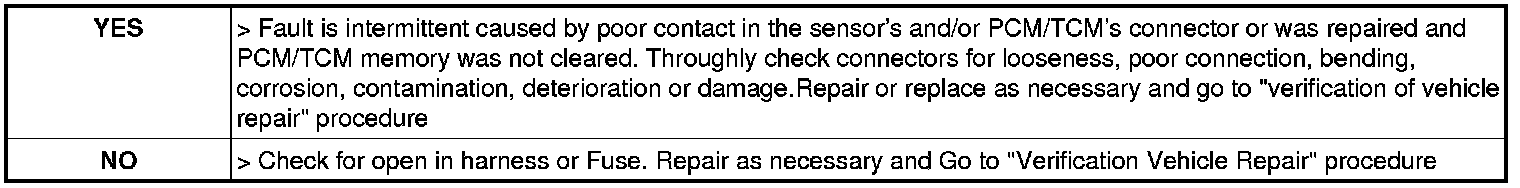

6. Is "Measured voltage" within specification?
