Automatic Transaxle - P0880 TCM Power Signal Error Open/Short (GND) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scan tool to data link connector (DLC), Ignition "ON"
2. Erase DTC and Engine "ON"
3. Monitor the "Battery voltage" parameter on the scan tool.
4. Confirm the Battery voltage in Idle status.

Specification : 13.5 - 14.5 V




Fig 1) Battery voltage in Idle status

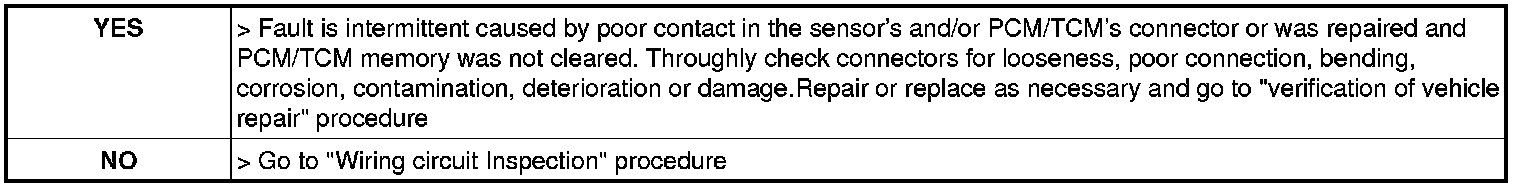

5. Is "Battery voltage" within specification?
