Scantool Diagnostics

Trans

Automatic Transaxle - P0716 Input/Turbine Speed Sensor 'A' Circuit Range/Performance - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC).
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR" parameter on the scan tool.
4. Drive the vehicle.




Fig 1) Input speed sensor signal while driving

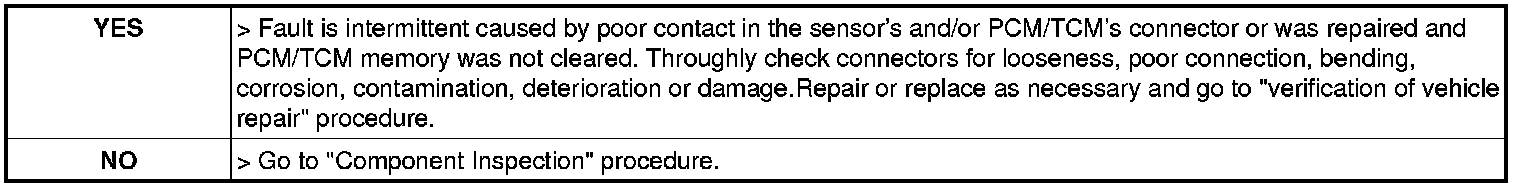

5. Is "Input speed sensor" output value within normal range?
