Component Inspection

Engine

Engine Control - P0662 Intake Manifold Tuning Valve Control Circuit High (Bank 1) - Component Inspection

Component Inspection

Check VIV
1. IG "OFF" and disconnect VIV connector.
2. Measure resistance between power and control terminals of VIV connector. (Component side)

Specification : 30 - 35 Ohms (22°C/71.6°F)

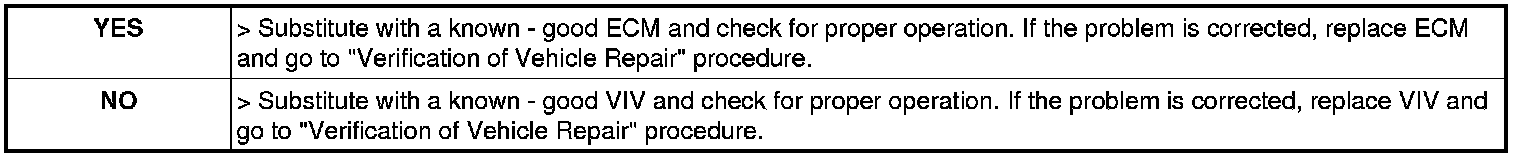

3. Is the measured resistance within specification?
