Component Inspection

Engine

Engine Control - P0449 Evaporative Emission System-Vent Valve / Solenoid Circuit - Component Inspection

Component Inspection

Check CCV
1. IG "OFF" and disconnect CCV connector.
2. Measure resistance between power and control terminals of CCV connector. (Component side)

Specification : 17 ± 1.5 Ohms (20°C (68°F))

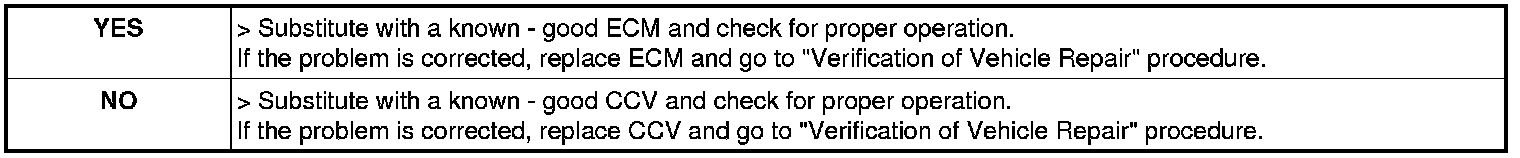

3. Is the measured resistance within specification?
