Component Inspection

Engine

Engine Control - P0341 Camshaft Position Sensor A Circuit Range/Performance (Bank 1) - Component Inspection

Component Inspection

Check CMPS
1. IG "OFF" and connect scantool.
2. ENG "ON" and Measure signal waveform at signal terminal of CMPS.

Specification : Refer to Signal Waveform & Data

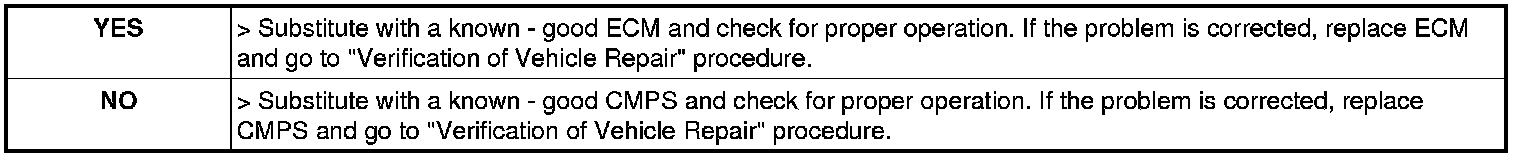

3. Is the measured signal waveform normal?
