Component Inspection

Engine

Engine Control - P0016 Crankshaft Position-Camshaft Position Correlation (Bank 1 Sensor A) - Component Inspection

Component Inspection

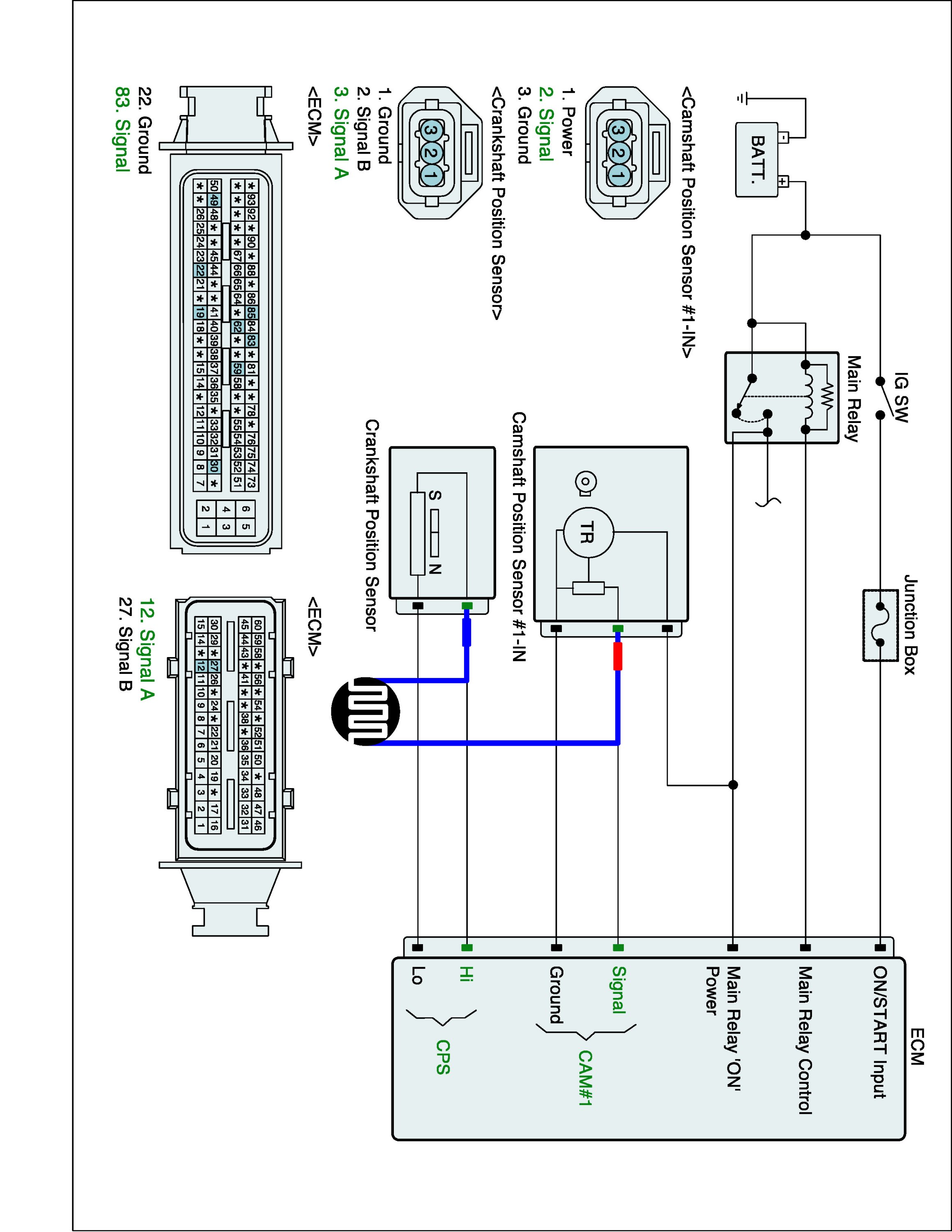

CMPS, CKPS Inspection
1. IG "OFF" and connect scantool.
2. ENG "ON" and Measure signal waveform at signal terminal of CMPS.
3. Measure signal waveform at signal terminal of CKPS.

Specification : Refer to Signal Waveform & Data

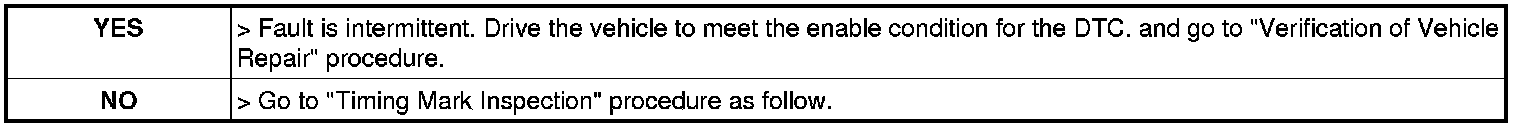

4. Is the measured signal waveform O.K?





Timing Mark Inspection
1. IG "OFF" and check the timing mark is correctly aligned.

Reference :

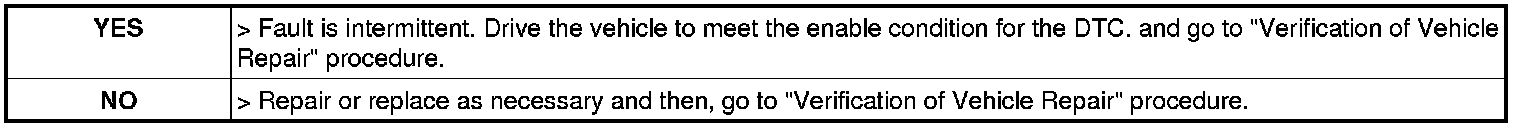

2. Is the timing mark correctly aligned?
