Electronic Stability Control - C2336 Rear-RH Valve error (Outlet Valve) - Scantool Diagnostics

Check actuation test

1. Connect scantool to Data Link Connector (DLC)
2. IG "ON"
3. Select the "Actuation Test" mode on the scantool.
4. Monitor the operating status of the valve by Actuation Test of scantool.

Specification : If the operating sound is heard, it works okay.

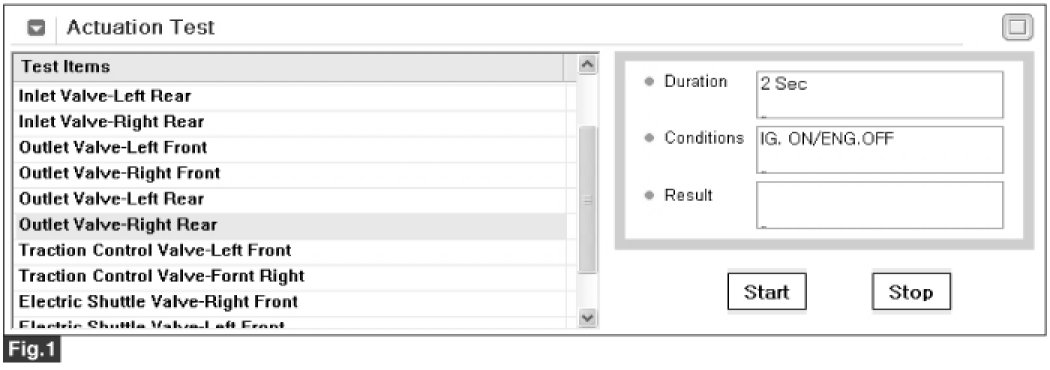

Fig.1) Test Condition : Ignition "ON" & Engine "OFF".

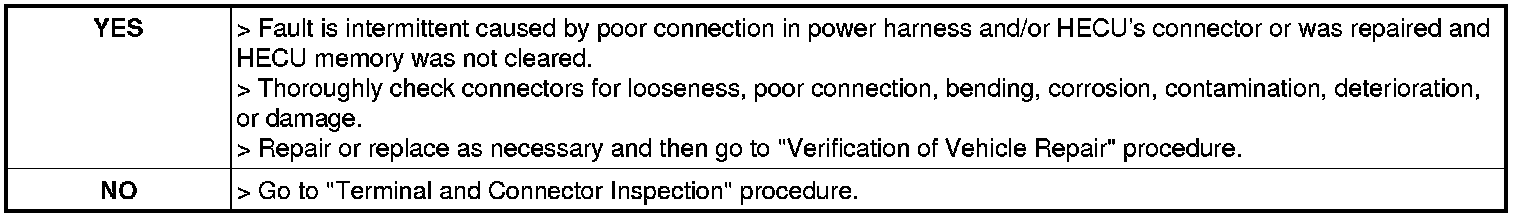

5. Does the valve operate normally?
