Component Inspection

TPMS

Tire Pressure Monitoring System - C1661 Receiver EEPROM Failure - Component Inspection

Component Inspection

1. Connect scantool to Data Link Connector (DLC).
2. Using scantool, clear DTCs.
3. IG OFF and then, IG ON,again.
4. Again using scantool, Check DTC present.

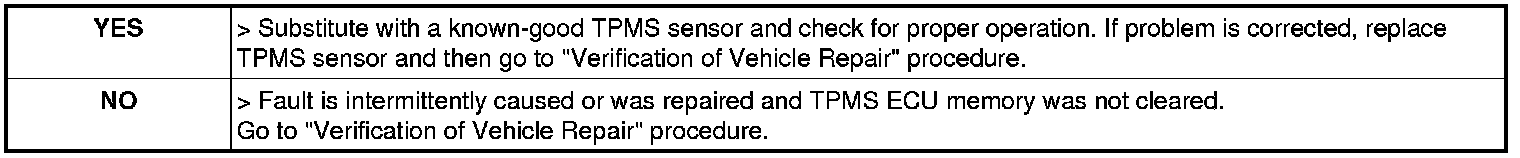

5. Is the same DTC shown, again?
