Component Inspection

TPMS

Tire Pressure Monitoring System - C1345 Front Low Frequency Initiator Channel Failure - Component Inspection

Component Inspection

1. This DTC could be set by an improper installed sensor/ initiator/ ECU.
Check for its installation status and reinstall the improper installed component.
2. Connect scantool and check DTCs.
3. Using scantool, clear DTCs.
4. IG OFF and then, IG ON,again.
5. Again using scantool, Check DTC present.

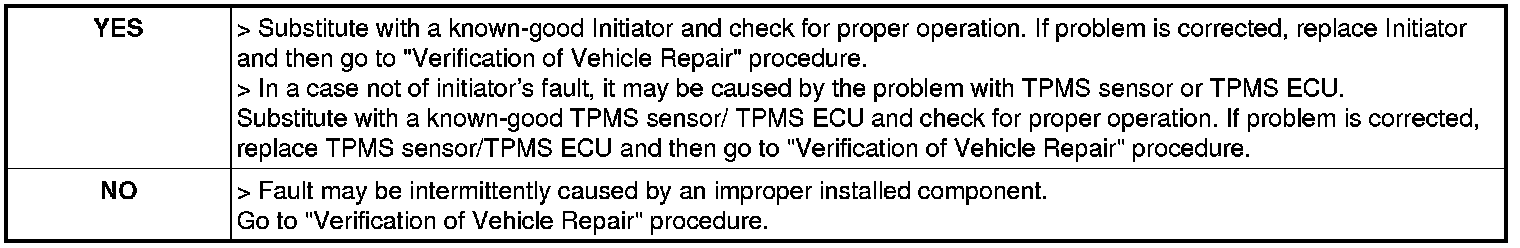

6. Is the same DTC shown, again?
