Tire Pressure Monitoring System - C1323 Front Right Sensor Over Temperature - Scantool Diagnostics

Monitor Scantool Data

1. Park the vehicle on an even ground.
2. Connect scantool to Data Link Connector (DLC).
3. IG "ON"
4. Monitor the service data related to sensor's temperature on the scantool.

Specification : Below 230°F (110°C)




Fig.1) Sensor current data at IG "ON"

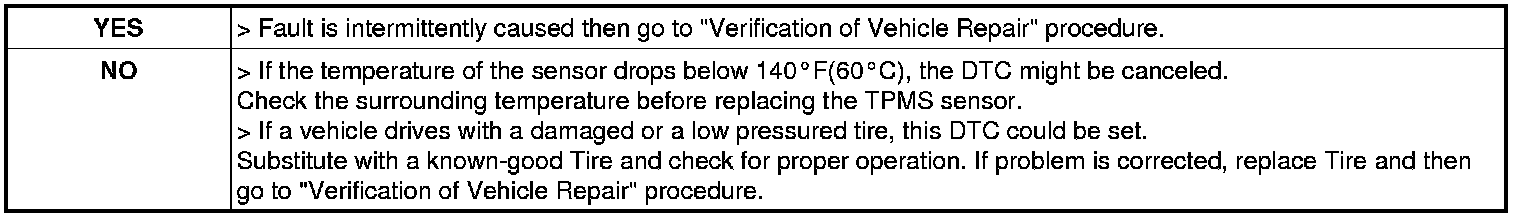

5. Is the service data shown normally?
